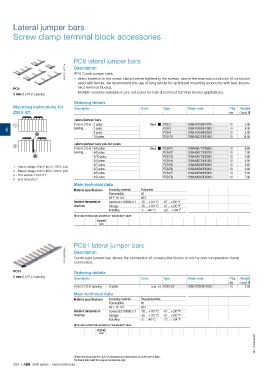

Page 208 - 1SNK160027C0207_SNK Series Terminal Blocks

Lateral jumper bars

Screw clamp terminal block accessories

PC8 lateral jumper bars
1SNC160112F0014 Description
IP20 Comb jumper bars,
– direct insertion in the screw clamp before tightening the screws, above the eventual conductor (if conductor
used with ferrule, we recommend the use of long ferrule for optimized mounting ergonomy with test discon-
PC8 nect terminal blocks),
8 mm 0.315 in spacing – Multiple versions available in pre-cut poles for test disconnect terminal blocks applications.
Ordering details
Mounting instructions for Description Color Type Order code Pkg Weight
ZS10-ST... qty (1 pce) g

Lateral jumper bars
1 8 mm 0.315 in 2 poles Black PC8-2 1SNA116538R1700 10 3.00
5 spacing 3 poles PC8-3 1SNA116539R1000 10 4.00
a 4 poles PC8-4 1SNA116540R2500 10 6.00
10 poles PC8-10 1SNA163313R2400 10 14.00
Lateral jumper bars pre-cut poles
2
8 mm 0.315 in 4/6 poles Black PC8-R1 1SNA400711R0600 10 6.60
spacing 4/8 poles PC8-R2 1SNA400712R0700 10 7.80
b 4/10 poles PC8-R3 1SNA400713R0000 10 9.00
3/4 poles PC8-R4 1SNA400724R0300 10 4.50
4/7 poles PC8-R5 1SNA400842R0000 10 6.60
1 - Rated voltage: 630 V (IEC) / 150 V (UL) 2/3 poles PC8-R6 1SNA400843R0000 10 6.60
2 - Rated voltage: 630 V (IEC) / 300 V (UL) 4/6 poles PC8-R7 1SNA400849R0000 10 6.60
a - End section ES10-ST 4/8 poles PC8-R8 1SNA400850R0000 10 7.80
b - End stop BAZ1
Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F3
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values

RoHS

PC81 lateral jumper bars
1SNC160537F0014 Description

Comb-type jumper bar, allows the connection of consecutive blocks or not by one compression clamp
connection.

PC81 Ordering details
8 mm 0.315 in spacing
Description Color Type Order code Pkg Weight
qty (1 pce) g
8 mm 0.315 in spacing 10 poles Grey PC81-10 1SNA173523R1100 10 5.00
Main technical data
Material specifications Insulating material Brass/polyamide
Flammability V0
NF F 16 101 I2F3
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C -23 ... +104 °F
All the main technical data provided are "manufacturer" values
RoHS
1SNK161060S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
