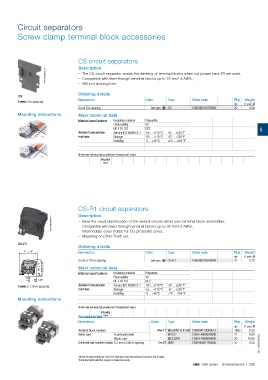

Page 209 - 1SNK160027C0207_SNK Series Terminal Blocks

Circuit separators

Screw clamp terminal block accessories

CS circuit separators
Description
1SNK160002F0014 – The CS circuit separator avoids the derating of terminal blocks when cut jumper bars JB are used,
– Compatible with feed-through terminal blocks up to 16 mm² 4 AWG,
– Without spacing loss.

Ordering details
CS
0 mm 0 in spacing Description Color Type Order code Pkg Weight
qty (1 pce) g
0 mm 0 in spacing Dark grey CS 1SNK900101R0000 20 0.20
Mounting instructions Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2 5
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F

All the main technical data provided are "manufacturer" values

RoHS

CS-R1 circuit separators
Description
1SNK160003F0014 – Ease the visual identification of the several circuits within your terminal block assemblies,
– Compatible with feed-through terminal blocks up to 35 mm² 0 AWG,
– Intermediate cover holder for CO protective cover,
– Mounting on DIN3-TH35 rail.
CS-R1
Ordering details
71 2.79" Description Color Type Order code Pkg Weight
qty (1 pce) g
3 mm 0.118 in spacing Dark grey CS-R1 1SNK900103R0000 20 5.20
69 2.72" 61.5 2.42" Main technical data
Material specifications Insulating material Polyamide
Flammability V0
35 1.38" NF F 16 101 I2F2
3 mm 0.118 in spacing Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
Mounting instructions

All the main technical data provided are "manufacturer" values
Accessories RoHS
Description Color Type Order code Pkg Weight
qty (1 pce) g
Terminal block markers White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
Blank card In polycarbonate MC512 1SNK140000R0000 22 9.00
1SNK160018S0201
Blank card MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNK series - Terminal blocks | 205
