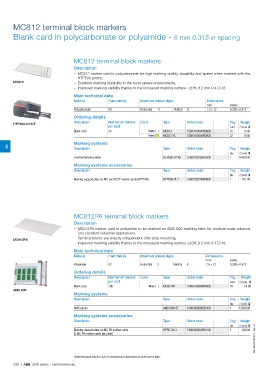

Page 240 - 1SNK160027C0207_SNK Series Terminal Blocks

MC812 terminal block markers

Blank card in polycarbonate or polyamide - 8 mm 0.315 in spacing

MC812 terminal block markers
Description
– MC812 marker card in polycarbonate for high marking quality, durability and speed when marked with the
HTP500 printer,
MC812 – Excellent marking durability in the most severe environments,
– Improved marking visibility thanks to the increased marking surface +20% (12 mm 0.472 in)
Main technical data
Material Flammability Maximum printed digits Dimensions
mm inches
Polycarbonate V0 Horizontal 4 Vertical 8 7.6 x 12 0.299 x 0.472
Ordering details
Description Number of markers Color Type Order code Pkg Weight
HTP500-V2 KIT
per card card (1 pce) g
Blank card 30 White MC812 1SNK160000R0000 22 10.00
Yellow MC812-YL 1SNK160004R0000 22 10.00
Marking systems
6 Description Type Order code Pkg Weight
qty (1 pce) g
Thermal transfer printer HTP500-V2 KIT 1SNA235700R1500 1 16000.00
Marking systems accessories
Description Type Order code Pkg Weight
qty (1 pce) g
Marking support plate for MC and RCTT marker cards (HTP500) HTP500-PL2 1SNA235705R0600 1 291.00

MC812PA terminal block markers
Description
– MC812PA marker card in polyamide to be marked on AMS 600 marking table for medium scale volumes
and standard industrial applications,
– Terminal blocks are directly independent after strip mounting,
MC812PA
– Improved marking visibility thanks to the increased marking surface +20% (12 mm 0.472 in)
Main technical data
Material Flammability Maximum printed digits Dimensions
mm inches
Polyamide V2 Horizontal 3 Vertical 8 7.6 x 12 0.299 x 0.472
Ordering details
Description Number of markers Color Type Order code Pkg Weight
per card card (1 pce) g
Blank card 100 White MC812PA 1SNK169999R0000 20 14.00
AMS 600
Marking systems
Description Type Order code Pkg Weight
qty (1 pce) g
AMS plotter AMS 600 KIT 1SNA360000R2400 1 12600.00
Marking systems accessories
Description Type Order code Pkg Weight
qty (1 pce) g
1SNK160009S0201 - Rev. A
Marking support plate for MC PA marker cards SPRC 30-3 1SNA360039R1700 1 300.00
(3 MC PA marker cards per plate)

All the technical data for UL/CSA standard and dimensions in inches are in italic.
236 | ABB SNK series - Terminal blocks
