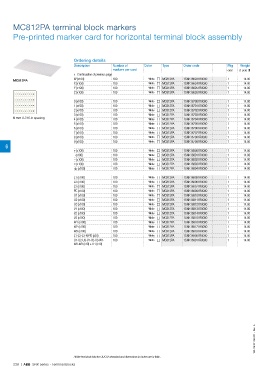

Page 242 - 1SNK160027C0207_SNK Series Terminal Blocks

MC812PA terminal block markers

Pre-printed marker card for horizontal terminal block assembly

Ordering details
Description Number of Color Type Order code Pkg Weight
markers per card card (1 pce) g
← Continuation of previous page
W (x100) 100 White MC812PA 1SNK166231R0000 1 14.00
MC812PA
X (x100) 100 White MC812PA 1SNK166241R0000 1 14.00
Y (x100) 100 White MC812PA 1SNK166251R0000 1 14.00
Z (x100) 100 White MC812PA 1SNK166261R0000 1 14.00

0 (x100) 100 White MC812PA 1SNK167001R0000 1 14.00
1 (x100) 100 White MC812PA 1SNK167011R0000 1 14.00
2 (x100) 100 White MC812PA 1SNK167021R0000 1 14.00
3 (x100) 100 White MC812PA 1SNK167031R0000 1 14.00
8 mm 0.315 in spacing 4 (x100) 100 White MC812PA 1SNK167041R0000 1 14.00
5 (x100) 100 White MC812PA 1SNK167051R0000 1 14.00
6 (x100) 100 White MC812PA 1SNK167061R0000 1 14.00
7 (x100) 100 White MC812PA 1SNK167071R0000 1 14.00
8 (x100) 100 White MC812PA 1SNK167081R0000 1 14.00
9 (x100) 100 White MC812PA 1SNK167091R0000 1 14.00
6
+ (x100) 100 White MC812PA 1SNK168001R0000 1 14.00
- (x100) 100 White MC812PA 1SNK168011R0000 1 14.00
~ (x100) 100 White MC812PA 1SNK168021R0000 1 14.00
= (x100) 100 White MC812PA 1SNK168031R0000 1 14.00
(x100) 100 White MC812PA 1SNK168041R0000 1 14.00
L1 (x100) 100 White MC812PA 1SNK168051R0000 1 14.00
L2 (x100) 100 White MC812PA 1SNK168061R0000 1 14.00
L3 (x100) 100 White MC812PA 1SNK168071R0000 1 14.00
PE (x100) 100 White MC812PA 1SNK168091R0000 1 14.00
U1 (x100) 100 White MC812PA 1SNK168101R0000 1 14.00
U2 (x100) 100 White MC812PA 1SNK168111R0000 1 14.00
U3 (x100) 100 White MC812PA 1SNK168121R0000 1 14.00
V1 (x100) 100 White MC812PA 1SNK168131R0000 1 14.00
V2 (x100) 100 White MC812PA 1SNK168141R0000 1 14.00
V3 (x100) 100 White MC812PA 1SNK168151R0000 1 14.00
W1 (x100) 100 White MC812PA 1SNK168161R0000 1 14.00
W2 (x100) 100 White MC812PA 1SNK168171R0000 1 14.00
W3 (x100) 100 White MC812PA 1SNK168181R0000 1 14.00
L1-L2-L3-N-PE (x20) 100 White MC812PA 1SNK169001R0000 1 14.00
U1-U2-U3-V1-V2-V3-W1- 100 White MC812PA 1SNK169011R0000 1 14.00
W2-W3 (x10) + U1 (x10)

1SNK160010S0201 - Rev. A

All the technical data for UL/CSA standard and dimensions in inches are in italic.
238 | ABB SNK series - Terminal blocks
