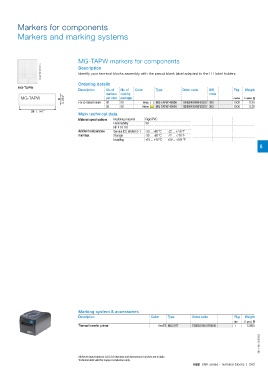

Page 247 - 1SNK160027C0207_SNK Series Terminal Blocks

Markers for components

Markers and marking systems

MG-TAPW markers for components
1SNC160137F0014 Description
Identify your terminal blocks assembly with the precut blank label adapted to the LH label holders.

Ordering details
MG-TAPW
Description Nb. of Nb. of Color Type Order code SW Pkg Weight
markers card by code
MG-TAPW 9 0.354" per card package marker 1 marker g
30
For LH label holder
White
1SNB049046R0929 363
0.30
MG-TAPW 49046
50
30 50 Yellow MG-TAPW 49096 1SNB049096R0929 363 1500 0.30
1500
29 1.141"
Main technical data
Material specifications Insulating material Rigid PVC
Flammability V0
NF F 16 101
Ambient temperature Service IEC 60068-2-1 -30 ... +80 °C -22 ... +176 °F
min/max Storage -30 ... +80 °C -22 ... +176 °F
Installing +10 ... +40 °C +50 ... +104 °F
6

Marking system & accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
Thermal transfer printer Grey MG3 KIT 1SNB419001R0000 1 12600
1SNK160100S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNK series - Terminal blocks | 243
