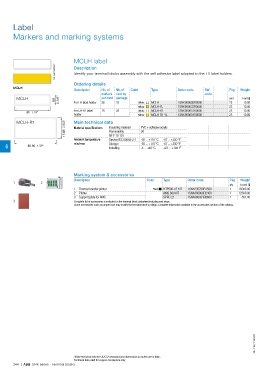

Page 248 - 1SNK160027C0207_SNK Series Terminal Blocks

Label

Markers and marking systems

MCLH label
1SNK500098F0000 Description
Identify your terminal blocks assembly with the self adhesive label adapted to the LH label holders.

Ordering details
MCLH
Description Nb. of Nb. of Color Type Order code SW Pkg Weight
markers card by code
MCLH per card package card 1 card g
8.8 0.346" For LH label holder 36 25 White MCLH 1SNK900630R0000 25 10.00
Yellow MCLH-YL 1SNK900633R0000 25 10.00
For LH-R1 label 15 25 White MCLH-R1 1SNK900631R0000 25 10.00
30 1.18"
holder Yellow MCLH-R1-YL 1SNK900634R0000 25 10.00
MCLH-R1 Main technical data
17.65 0.695" Material specifications Insulating material PVC + adhesive acrylic
V0
Flammability
Ambient temperature NF F 16 101 -55 ... +110 °C -67 ... +230 °F
Service IEC 60068-2-1
6 35.35 1.39" min/max Storage -55 ... +110 °C -67 ... +230 °F
-5 ... +40 °C
+23 ... +104 °F
Installing

Marking system & accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 Thermal transfer printer Black HTP500-V2 KIT 1SNA235700R1500 1 16000.00
2 Plotter AMS 600 KIT 1SNA360000R2400 1 12600.00
3 Support plate for AMS SPRC 21 1SNA360031R0600 1 851.00
3 Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK160101S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
244 | ABB SNK series - Terminal blocks
