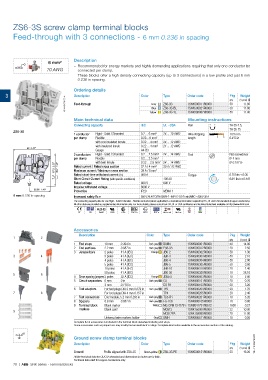

ZS6-3S screw clamp terminal blocks

Feed-through with 3 connections - 6 mm 0.236 in spacing

6 mm² Description
– Recommended for energy markets and highly demanding applications requiring that only one conductor be
10 AWG connected per clamp,
– These blocks offer a high density connecting capacity (up to 3 connections) in a low profile and just 6 mm
0.236 in spacing.

Ordering details
3 Description Color Type Order code Pkg (1 pce) g
Weight
1SNK161075V0014 Feed-through Grey ZS6-3S 1SNK506011R0000 50 11.80
qty
50
1SNK506021R0000
11.80
ZS6-3S-BL
Blue
Main technical data Yellow ZS6-3S-YL 1SNK506067R0000 50 11.80
Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
ZS6-3S
1 conductor Rigid - Solid / Stranded 0.2 ... 6 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible 0.22... 6 mm² length 0.413 in
with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
62 2.44"
Gauge A4-B3
2 conductors Rigid - Solid / Stranded 0.2 ... 2.5 mm² 24 ... 14 AWG Tool Flat screwdriver
per clamp Flexible 0.2 ... 2.5 mm² Ø 4 mm
with twin ferrule 0.22 ... 2.5 mm² 24 ... 14 AWG Ø 0.157 in
57.2 2.25" 49.7 1.96" Rated current / Rated cross section 32 A / 4 mm² 30 A / 10 AWG
39 A / 6 mm²
Maximum current / Maximum cross section
Rated short-time withstand current (1s) 480 A Torque 0.75 Nm ± 0.05
Short Circuit Current Rating (with specific conditions) 100 kA 6.64 lb.in ± 0.443
Rated voltage 800 V 600 V
Impulse withstand voltage 8000 V
35.65 1.40"
Protection IP20 NEMA 1
6 mm 0.236 in spacing Increased safety Ex e 550 V 29 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC – 600 V 30 A
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV
Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES6-3S 1SNK505912R0000 20 2.50
3 Jumper bars 2 poles 41 A (IEC) Orange JB6-2 1SNK906302R0000 50 1.30
3 4 3 poles 41 A (IEC) JB6-3 1SNK906303R0000 50 2.10
4 poles 41 A (IEC) JB6-4 1SNK906304R0000 50 2.90
5 poles 41 A (IEC) JB6-5 1SNK906305R0000 50 3.60
10 poles 41 A (IEC) JB6-10 1SNK906310R0000 20 7.40
50 poles 41 A (IEC) JB6-50 1SNK906350R0000 10 38.10
5 6
4 Cross spacing jumpers 3 poles 32 A (IEC) Orange JB85-3 1SNK900603R0000 10 2.80
5 Circuit separators 0 mm 0 in Dark grey CS 1SNK900101R0000 20 0.20
3 mm 0.118 in CS-R1 1SNK900103R0000 20 5.20
6 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
7 8 For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
7 Test connectors End module, 5.2 mm 0.205 in Dark grey TC5-R1 1SNK900201R0000 10 5.20
8 Spacers 0.8 mm 0.031 in Dark grey ES-TC6 1SNK900105R0000 10 0.80
9 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
9
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground screw clamp terminal blocks
Description Color Type Order code Pkg Weight 1SNK161067S0201
qty (1 pce) g
Ground Profile aligned with ZS6-3S Green-yellow ZS6-3S-PE 1SNK506151R0000 25 16.20
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
