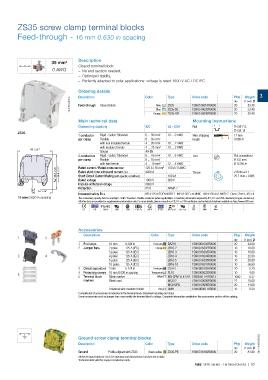

Page 87 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS35 screw clamp terminal blocks

Feed-through - 16 mm 0.630 in spacing

35 mm² Description
Closed terminal block:
0 AWG – No end section needed,
– Optimized rigidity,
– Perfectly adapted to solar applications: voltage is rated 1000 V AC / DC IEC.

Ordering details Color Type Order code Pkg Weight 3
Description
1SNK161004F0014 Feed-through Closed block Grey ZS35 1SNK516010R0000 qty (1 pce) g
20
53.40
Blue
20
1SNK516030R0000
Orange ZS35-BL 1SNK516020R0000 20 53.40
ZS35-OR
53.40
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
ZS35
1 conductor Rigid - Solid / Stranded 6 ... 35 mm² 10 ... 0 AWG Wire stripping 17 mm
per clamp Flexible 6 ... 35 mm² length 0.669 in
with non insulated ferrule 4 ... 35 mm² 10 ... 2 AWG
with insulated ferrule 4 … 35 mm² 10 ... 2 AWG
59 2.32"
Gauge A9-B9
2 conductors Rigid - Solid / Stranded 6 ... 16 mm² 10 ... 6 AWG Tool Flat screwdriver
per clamp Flexible 6 ... 16 mm² Ø 6.5 mm
with twin ferrule 4 … 10 mm² 12 ... 8 AWG Ø 0.256 in
125 A / 35 mm²
150 A / 0 AWG
Rated current / Rated cross section
63.3 2.49" 55.8 2.19" Rated short-time withstand current (1s) 4200 A 100 kA Torque 2.9 Nm ± 0.1
25.7 lb.in ± 0.885
Short Circuit Current Rating (with specific conditions)
Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V
Protection IP10 NEMA 1
34 1.34"
Increased safety Ex e 693 V 125 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC – 600 V 150 A UL 60079-7 - Class I, Zone 1, AEx e II
16 mm 0.630 in spacing The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina
Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles 125 A (IEC) Orange JB16-2 1SNK916302R0000 10 10.00
3 poles 125 A (IEC) JB16-3 1SNK916303R0000 10 16.00
3 4 4 poles 125 A (IEC) JB16-4 1SNK916304R0000 10 22.00
5 poles 125 A (IEC) JB16-5 1SNK916305R0000 10 28.00
10 poles 125 A (IEC) JB16-10 1SNK916310R0000 10 56.60
3 Circuit separators 3 mm 0.118 in Dark grey CS-R1 1SNK900103R0000 20 5.20
4 Protecting covers 16 mm 0.630 in spacing Transparent PL16 1SNK900622R0000 10 4.60
5
5 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground screw clamp terminal blocks
Description Color Type Order code Pkg Weight 1SNK161019S0201
qty (1 pce) g
Ground Profile aligned with ZS35 Green-yellow ZS35-PE 1SNK516150R0000 20 81.80
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNK series - Terminal blocks | 83
