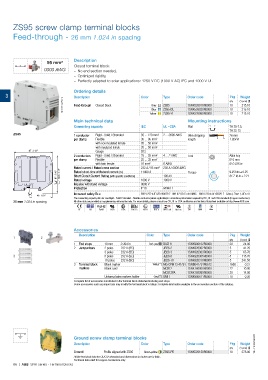

Page 90 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS95 screw clamp terminal blocks

Feed-through - 26 mm 1.024 in spacing

95 mm² Description
Closed terminal block:
0000 AWG – No end section needed,
– Optimized rigidity,
– Perfectly adapted to solar applications: 1250 V DC (1000 V AC) IEC and 1000 V UL.

Ordering details
3 Description Color Type Order code Pkg (1 pce) g
Weight
1SNK161025F0014 Feed-through Closed block Grey ZS95 1SNK526010R0000 qty 215.10
10
10
Blue
215.10
1SNK526020R0000
ZS95-BL
Mounting instructions
Main technical data Yellow ZS95-YL 1SNK526060R0000 10 215.10
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
ZS95 1 conductor Rigid - Solid / Stranded 35 ... 120 mm² 2 ... 0000 AWG Wire stripping 26 mm
per clamp Flexible 35 ... 95 mm² length 1.024 in
with non insulated ferrule 35 ... 50 mm²
with insulated ferrule 35 ... 50 mm²
87 3.43" Gauge B12
2 conductors Rigid - Solid / Stranded 25 ... 35 mm² 4 ... 2 AWG Tool Allen key
per clamp Flexible 25 ... 35 mm² Ø 6 mm
with twin ferrule 16 mm² 6 AWG Ø 0.236 in
Rated current / Rated cross section 232 A / 95 mm² 230 A / 0000 AWG
87 3.43" 79.5 3.13" Rated short-time withstand current (1s) 11400 A 100 kA Torque 9.25 Nm ± 0.25
81.7 lb.in ± 2.21
Short Circuit Current Rating (with specific conditions)
Rated voltage 1000 V 1000 V
Impulse withstand voltage 8000 V
Protection IP10 NEMA 1
Increased safety Ex e 693 V 232 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC – 600 V 230 A UL 60079-7 - Class I, Zone 1, AEx e II
46 1.81"
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
26 mm 1.024 in spacing All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles 232 A (IEC) JB26-2 1SNK926302R0000 5 41.20
3 poles 232 A (IEC) JB26-3 1SNK926303R0000 5 65.70
3 5 poles 232 A (IEC) JB26-5 1SNK926305R0000 5 115.70
10 poles 232 A (IEC) JB26-10 1SNK926310R0000 5 241.50
3 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground screw clamp terminal blocks
Description Color Type Order code Pkg Weight 1SNK161023S0201
qty (1 pce) g
Ground Profile aligned with ZS95 Green-yellow ZS95-PE 1SNK526150R0000 10 278.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
86 | ABB SNK series - Terminal blocks
