P. 329

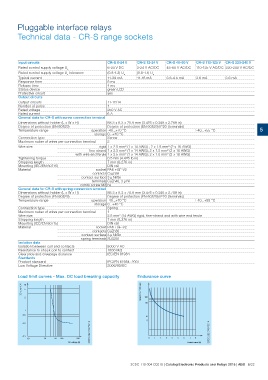

Pluggable interface relays
Technical data - CR-S range sockets
Input circuits CR-S 6-24 V CR-S 12-24 V CR-S 48-60 V CR-S 110-125 V CR-S 220-240 V
Rated control supply voltage Us 6-24 V DC 2-24 V AC/DC 48-60 V AC/DC 110-125 V AC/DC 220-240 V AC/DC
Rated control supply voltage Us tolerance (0.8-1.2) Un (0.8-1.1) Un 3.6-4.5 mA 3.6 mA 3.6 mA
11-16 mA
Typical current 11-29 mA
Response time 8 ms
Release time 4 ms
Status device green LED
Protective circuit yes
Output circuits
Output circuits 11-12/14
Number of poles 1
Rated voltage 250 V AC
Rated current 6A
General data for CR-S with screw connection terminal
Dimensions without holder (L x W x H) 88.3 x 6.3 x 70.9 mm (3.476 x 0.248 x 2.789 in)
Degree of protection (EN 60529) Degree of protection (EN 60529) IP20 (terminals) 5
Temperature range operation -40...+70 °C -40...+55 °C
storage 0...+40 °C
Connection type Screw
Maximum nuber of wires per connection terminal 2
Wire size rigid 1 x 2.5 mm² (1 x 14 AWG) ; 2 x 1.5 mm² (2 x 16 AWG)
fine-strand 1 x 2.5 mm² (1 x 14 AWG); 2 x 1.5 mm² (2 x 16 AWG)
with wire end ferule 1 x 2.5 mm² (1 x 14 AWG); 2 x 1.0 mm² (2 x 18 AWG)
Tightening torque 0.5 Nm (4.426 lb.in)
Stripping length 7 mm (0.276 in)
Mounting (IEC/EN 60715) DIN rail
Material socket PA6 +GF-V2
contacts CuZn36
contact surface 3 μ Ni/Sn
terminals CuZn40, 3 μ Ni
combi screw M3 Fe
General data for CR-S with spring connection terminal
Dimensions without holder (L x W x H) 88.3 x 6.3 x 70.9 mm (3.476 x 0.248 x 2.789 in)
Degree of protection (EN 60529) Degree of protection (EN 60529) IP20 (terminals)
Temperature range operation -40...+70 °C -40...+55 °C
storage 0...+40 °C
Connection type Spring
Maximum nuber of wires per connection terminal 1
Wire size 2.5 mm² (14 AWG) rigid, fine-strand and with wire end ferule
Stripping length 7 mm (0.276 in)
Mounting (IEC/EN 60715) DIN rail
Material socket PA6 +GF-V2
contacts CuZn36
contact surface 3 μ Ni/Sn
spring terminals SUS301
Isolation data
Isolation between coil and contacts 5000 V AC
Resistance to shock coil to contact 1000 M:
Clearance and creepage distance IEC/EN 61984
Standards
Product stancard IEC/EN 61984: 2001
Low Voltage Directive 2006/95/EC
Load limit curves - Max. DC load breaking capacity Endurance curve
10 100
5 50
2
10
1 5
0.5
0.2
DC current (A)
0.1 2CDC 292 012 F0214
10
Operations (*1000 ops)
2CDC 292 013 F0214
20 50 100 200 0 1 2 34 5 6 78
Contact current (A)
DC voltage (V)
2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 5/22
