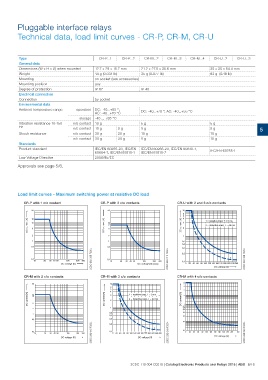

Pluggable interface relays
Technical data, load limit curves - CR-P, CR-M, CR-U

Type CR-P...1 CR-P...2 CR-M...2 CR-M...3 CR-M...4 CR-U...2 CR-U...3

General data

Dimensions (W x H x D) when mounted 12.7 x 29 x 15.7 mm 21.2 x 27.5 x 35.6 mm 35 x 35 x 54.4 mm
83 g (0.18 lb)
Weight 14 g (0.031 lb) 35 g (0.077 lb)

Mounting on socket (see accessories)

Mounting position any

Degree of protection IP 67 IP 40

Electrical connection

Connection by socket

Environmental data

Ambient temperature range operation DC: -40...+85 °; DC: -40...+70 °; AC: -40...+55 °C
AC: -40...+70 °C
5g
storage -40 ... +85 °C 5g
n/o contact 10 g
Vibration resistance 10-150 n/c contact 10 g 5g 5g
Hz n/o contact 5g
Shock resistance n/c contact 10 g 5g 10 g 5
10 g
Standards 30 g 20 g
Product standard IEC/EN 60255-1
30 g 20 g

IEC/EN 60255-23, IEC/EN IEC/EN 60255-23, IEC/EN 60810-1,
60664-1, IEC/EN 61810-1 IEC/EN 61810-7

Low Voltage Directive 2006/95/EC

Approvals see page 5/6.

Load limit curves - Maximum switching power at resistive DC load

CR-P with 1 c/o contact CR-P with 2 c/o contacts CR-U with 2 and 3 c/o contacts

DC current [A] DC current [A] DC current [A] 1 = resistive load, T = 0 ms
2 = inductive load, T = 40 ms

DC voltage [V] 2CDC 292 005 F0204 DC voltage [V] 2CDC 292 010 F0204 DC voltage [V] 2CDC 292 028 F0204

CR-M with 2 c/o contacts CR-M with 3 c/o contacts CR-M with 4 c/o contacts

DC current [A] 1 = resistive load, T = 0 msDC current [A] DC current [A]
2 = inductive load, T = 40 ms

DC voltage [V] 2CDC 292 015 F0204 DC voltage [V] 2CDC 292 019 F0204 DC voltage [V] 2CDC 292 023 F0204

2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 5/18
