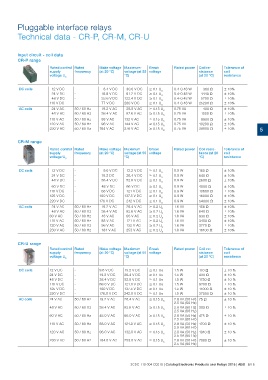

Page 323 - EPR Catalog 2015

Pluggable interface relays
Technical data - CR-P, CR-M, CR-U

Input circuit - coil data
CR-P range

Rated control Rated Make voltage Maximum- Break Rated power Coil re- Tolerance of
sistance coil
supply frequency (at 20 °C) voltage (at 55 voltage (at 20 °C) resistance

voltage US °C)

DC coils 12 V DC - 8.4 V DC 30.6 V DC ͧ 0.1 US 0.4-0.48 W 360 ⏲ Ȁ 10%
AC coils 24 V DC - 16.8 V DC 61.2 V DC ͧ 0.1 US 0.4-0.48 W 1440 ⏲ Ȁ 10%
48 V DC - 33.6 V DC 122.4 V DC ͧ 0.1 US 0.4-0.48 W 5700 ⏲ Ȁ 10%
110 V DC - 77 V DC 280 V DC ͧ 0.1 US 0.4-0.48 W 25200 ⏲ Ȁ 10% 5

24 V AC 50 / 60 Hz 19.2 V AC 28.8 V AC ͧ 0.15 US 0.75 VA 400 ⏲ Ȁ 10%
48 V AC 50 / 60 Hz 38.4 V AC 57.6 V AC ͧ 0.15 US 0.75 VA 1550 ⏲ Ȁ 10%

110 V AC 50 / 60 Hz 88 V AC 132 V AC ͧ 0.15 US 0.75 VA 8900 ⏲ Ȁ 10%
120 V AC 50 / 60 Hz 96 V AC 144 V AC ͧ 0.15 US 0.75 VA 10200 ⏲ Ȁ 10%
230 V AC 50 / 60 Hz 184 V AC 276 V AC ͧ 0.15 US 0.75 VA 38500 ⏲ Ȁ 10%

CR-M range

Rated control Rated Make voltage Maximum Break Rated power Coil resis- Tolerance of
tance (at 20 coil
supply frequency (at 20 °C) voltage (at 55 voltage °C) resistance

voltage US °C)

DC coils 12 V DC - 9.6 V DC 13.2 V DC ͧ 0.1 US 0.9 W 160 ⏲ Ȁ 10%
AC coils 24 V DC - 19.2 DC 26.4 V DC ͧ 0.1 US 0.9 W 640 ⏲ Ȁ 10%
48 V DC - 38.4 V DC 52.8 V DC ͧ 0.1 US 0.9 W 2600 ⏲ Ȁ 10%

60 V DC - 48 V DC 66 V DC ͧ 0.1 US 0.9 W 4000 ⏲ Ȁ 10%
110 V DC - 88 V DC 121 V DC ͧ 0.1 US 0.9 W 13600 ⏲ Ȁ 10%
125 V DC - 100 V DC 137.5 V DC ͧ 0.1 US 0.9 W 16000 ⏲ Ȁ 10%
220 V DC - 176 V DC 242 V DC 0.9 W 54000 ⏲ Ȁ 10%
ͧ 0.1 US
24 V AC 50 / 60 Hz 19.2 V AC 26.4 V AC 1.6 VA 158 ⏲ Ȁ 10%
48 V AC 50 / 60 Hz 38.4 V AC 52.8 V AC ͧ 0.2 US 1.6 VA 640 ⏲ Ȁ 10%
60 V AC 50 / 60 Hz 48 V AC 66 V AC ͧ 0.2 US 1.6 VA 930 ⏲ Ȁ 10%
110 V AC 50 / 60 Hz 88 V AC 121 V AC ͧ 0.2 US 1.6 VA 3450 ⏲ Ȁ 10%
120 V AC 50 / 60 Hz 96 V AC 132 V AC ͧ 0.2 US 1.6 VA 3770 ⏲ Ȁ 10%
230 V AC 50 / 60 Hz 184 V AC 253 V AC ͧ 0.2 US 1.6 VA 16100 ⏲ Ȁ 10%
ͧ 0.2 US

CR-U range

Rated control Rated Make voltage Maximum Break Rated power Coil re- Tolerance of
sistance coil
supply frequency (at 20 °C) voltage (at 55 voltage (at 20 °C) resistance

voltage US °C)

DC coils 12 V DC - 9.6 V DC 13.2 V DC ͧ 0.1 Us 1.5 W 110 ⏲ Ȁ 10 %
AC coils 24 V DC - 19.2 V DC 26.4 V DC ͧ 0.1 Us 1.5 W 430 ⏲ Ȁ 10 %
48 V DC - 38.4 V DC 52.8 V DC ͧ 0.1 Us 1.5 W 1750 ⏲ Ȁ 10 %
110 V DC - 88.0 V DC 121.0 V DC ͧ 0.1 Us 1.5 W 9200 ⏲ Ȁ 10 %
125 V DC - 100 V DC 137.5 V DC ͧ 0.1 Us 1.5 W 11000 ⏲ Ȁ 10 %
220 V DC - 176.0 V DC 242.0 V DC ͧ 0.1 Us 1.5 W 37000 ⏲ Ȁ 10 %
24 V AC 50 / 60 Hz 19.2 V AC 26.4 V AC ͧ 0.15 US Ȁ 10 %
2.8 VA (50 Hz) 75 ⏲
48 V AC 50 / 60 Hz 38.4 V AC 52.8 V AC ͧ 0.15 US 2.5 VA (60 Hz) Ȁ 10 %

60 V AC 50 / 60 Hz 48.0 V AC 66.0 V AC ͧ 0.15 US 2.8 VA (50 Hz) 305 ⏲ Ȁ 10 %
2.5 VA (60 Hz)
110 V AC 50 / 60 Hz 88.0 V AC 121.0 V AC ͧ 0.15 US Ȁ 10 %
2.8 VA (50 Hz) 475 ⏲
120 V AC 50 / 60 Hz 96.0 V AC 132.0 V AC ͧ 0.15 US 2.5 VA (60 Hz) Ȁ 10 %

230 V AC 50 / 60 Hz 184.0 V AC 253.0 V AC ͧ 0.15 US 2.8 VA (50 Hz) 1700 ⏲ Ȁ 10 %
2.5 VA (60 Hz)

2.8 VA (50 Hz) 1910 ⏲
2.5 VA (60 Hz)

2.8 VA (50 Hz) 7080 ⏲
2.5 VA (60 Hz)

2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 5/16
