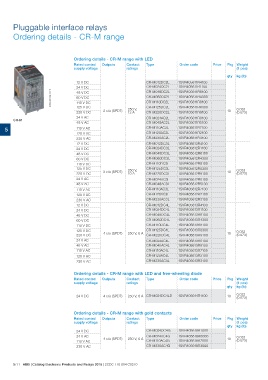

P. 318
Pluggable interface relays
Ordering details - CR-M range
Ordering details - CR-M range with LED
Rated control Outputs Contact Type Order code Price Pkg Weight
supply voltage ratings (1 pce)
qty kg (lb)
2CDC 291 002 F0015 12 V DC CR-M012DC2L 1SVR405611R4100
24 V DC CR-M024DC2L 1SVR405611R1100
48 V DC 2 c/o (SPDT) 250 V, CR-M048DC2L 1SVR405611R6100 10 0.033
60 V DC 3 c/o (SPDT) 12 A CR-M060DC2L 1SVR405611R4300 (0.073)
110 V DC 4 c/o (SPDT) CR-M110DC2L 1SVR405611R8100
125 V DC CR-M125DC2L 1SVR405611R8300
220 V DC CR-M220DC2L 1SVR405611R9100
24 V AC
CR-M 48 V AC CR-M024AC2L 1SVR405611R0100
CR-M048AC2L 1SVR405611R5100
5 110 V AC CR-M110AC2L 1SVR405611R7100
120 V AC CR-M120AC2L 1SVR405611R2100
230 V AC CR-M230AC2L 1SVR405611R3100
12 V DC
24 V DC 250 V, CR-M012DC3L 1SVR405612R4100 10 0.033
48 V DC 10 A CR-M024DC3L 1SVR405612R1100 (0.073)
60 V DC CR-M048DC3L 1SVR405612R6100
110 V DC CR-M060DC3L 1SVR405612R4300
125 V DC CR-M110DC3L 1SVR405612R8100
220 V DC CR-M125DC3L 1SVR405612R8300
24 V AC CR-M220DC3L 1SVR405612R9100
48 V AC
CR-M024AC3L 1SVR405612R0100
110 V AC CR-M048AC3L 1SVR405612R5100
120 V AC CR-M110AC3L 1SVR405612R7100
230 V AC CR-M120AC3L 1SVR405612R2100
12 V DC CR-M230AC3L 1SVR405612R3100
24 V DC
48 V DC CR-M012DC4L 1SVR405613R4100 10 0.033
60 V DC CR-M024DC4L 1SVR405613R1100 (0.073)
110 V DC 1SVR405613R6100
125 V DC CR-M048DC4L 1SVR405613R4300
220 V DC 1SVR405613R8100
24 V AC CR-M060DC4L 1SVR405613R8300
48 V AC 1SVR405613R9100
110 V AC CR-M110DC4L
1SVR405613R0100
120 V AC CR-M125DC4L 1SVR405613R5100
230 V AC 250 V, 6 A CR-M220DC4L 1SVR405613R7100
1SVR405613R2100
CR-M024AC4L 1SVR405613R3100
CR-M048AC4L
CR-M110AC4L
CR-M120AC4L
CR-M230AC4L
Ordering details - CR-M range with LED and free-wheeling diode
Rated control Outputs Contact Type Order code Price Pkg Weight
supply voltage ratings (1 pce)
qty kg (lb)
24 V DC 4 c/o (SPDT) 250 V, 6 A CR-M024DC4LD 1SVR405614R1100 10 0.033
(0.073)
Ordering details - CR-M range with gold contacts
Rated control Outputs Contact Type Order code Price Pkg Weight
supply voltage ratings (1 pce)
qty kg (lb)
24 V DC 4 c/o (SPDT) CR-M024DC4G 1SVR405618R1000 10 0.033
24 V AC CR-M024AC4G (0.073)
110 V AC 250 V, 6 A CR-M110AC4G 1SVR405618R0000
230 V AC CR-M230AC4G 1SVR405618R7000
1SVR405618R3000
5/11 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
