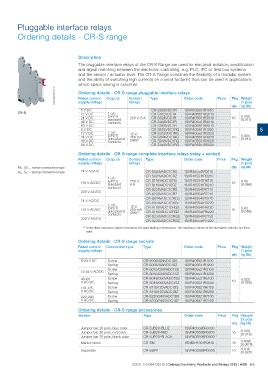

Pluggable interface relays
Ordering details - CR-S range
2CDC 291 005 F0014 Description
The pluggable interface relays of the CR-S Range are used for electrical isolation, amplification
and signal matching between the electronic controlling, e.g. PLC, iPC or field bus systems
and the sensor / actuator level. The CR-S Range combines the flexibility of a modular system
and the ability of switching high currents on a small footprint thus can be used in applications
where space saving is essential.
Ordering details - CR-S range pluggable interface relays
Rated control Outputs Contact Type Order code Price Pkg Weight
supply voltage ratings (1 pce)
qty kg (lb)
CR-S 5 V DC 1 c/o 250 V, 6 A CR-S005VDC1R 1SVR405501R1010 10 0.005
12 V DC (SPDT) 12 V, CR-S012VDC1R 1SVR405501R2010 (0.011)
RS, SS = screw connection type 24 V DC standard 250 mA CR-S024VDC1R 1SVR405501R3010
RZ, SZ = spring connection type 48 V DC contacts (3W)1) CR-S048VDC1R 1SVR405501R4010 5
60 V DC 1 c/o CR-S060VDC1R 1SVR405501R5010
5 V DC (SPDT) CR-S005VDC1RG 1SVR405501R1020 10 0.005
12 V DC gold plated CR-S012VDC1RG 1SVR405501R2020 (0.011)
24 V DC contacts CR-S024VDC1RG 1SVR405501R3020
48 V DC CR-S048VDC1RG 1SVR405501R4020
60 V DC CR-S060VDC1RG 1SVR405501R5020
Ordering details - CR-S range complete interface relays (relay + socket)
Rated control Outputs Contact Type Order code Price Pkg Weight
supply voltage ratings (1 pce)
qty kg (lb)
24 V AC/DC 1 c/o 250 V, CR-S024VADC1CRS 1SVR405541R3110 10 0.03
(SPDT) 6A CR-S024VADC1CRZ 1SVR405541R3210 (0.066)
110 V AC/DC standard 12 V, CR-S110VADC1CRS 1SVR405541R6110
230 V AC/DC contacts 250 mA CR-S110VADC1CRZ 1SVR405541R6210 10 0.03
24 V AC/DC 1 c/o (3W)1) CR-S230VADC1CRS 1SVR405541R7110 (0.066)
110 V AC/DC (SPDT) CR-S230VADC1CRZ 1SVR405541R7210
230 V AC/DC gold plated CR-S024VADC1CRGS 1SVR405541R3120
contacts CR-S024VADC1CRGZ 1SVR405541R3220
CR-S110VADC1CRGS 1SVR405541R6120
CR-S110VADC1CRGZ 1SVR405541R6220
CR-S230VADC1CRGS 1SVR405541R7120
CR-S230VADC1CRGZ 1SVR405541R7220
1) If speciļ¬ed maximum values exceeded, the gold plating is destroyed. The maximum values of the standard contacts are then
valid.
Ordering details - CR-S range sockets
Rated control Connection type Type Order code Price Pkg Weight
supply voltage (1 pce)
qty kg (lb)
6-24 V DC Screw CR-S006/024VDC1SS 1SVR405521R1100 10 0.025
Spring CR-S006/024VDC1SZ 1SVR405521R1200 (0.055)
12-24 V AC/DC Screw CR-S012/024VADC1SS 1SVR405521R3100
48-60 Spring CR-S012/024VADC1SZ 1SVR405521R3200
V AC/DC Screw CR-S048/060VADC1SS 1SVR405521R5100
110-125 Spring CR-S048/060VADC1SZ 1SVR405521R5200
V AC/DC Screw CR-S110/125VADC1SS 1SVR405521R6100
220-240 Spring CR-S110/125VADC1SZ 1SVR405521R6200
V AC/DC Screw CR-S220/240VADC1SS 1SVR405521R7100
Spring CR-S220/240VADC1SZ 1SVR405521R7200
Ordering details - CR-S range accessories
Version Type Order code Price Pkg Weight
(1 pce)
qty kg (lb)
Jumper bar 20 pole, blue color CR-SJB20-BLUE 1SVR405598R0700 10 0.008
Jumper bar 20 pole, red color CR-SJB20-RED 1SVR405598R0800 (0.018)
Jumper bar 20 pole, black color CR-SJB20-BLACK 1SVR405598R0900
Marker block 10 0.0036
CR-SM 1SNB041391R0610 (0.0079)
Separator
CR-SSEP 1SVR405599R0000 10 0.012
(0.026)
2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 5/8
