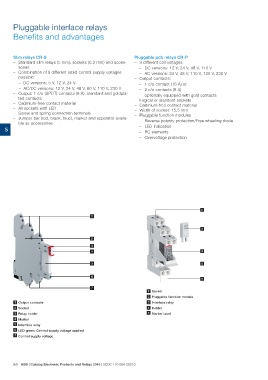

Page 312 - EPR Catalog 2015

Pluggable interface relays
Benefits and advantages

Slim relays CR-S Pluggable pcb relays CR-P
– Standard slim relays (5 mm), sockets (6.2 mm) and acces- – 9 different coil voltages

sories – DC versions: 12 V, 24 V, 48 V, 110 V
– Combination of 9 different rated control supply voltages – AC versions: 24 V, 48 V, 110 V, 120 V, 230 V
– Output contacts:
possible: – 1 c/o contact (16 A) or
– 2 c/o contacts (8 A)
– DC versions: 5 V, 12 V, 24 V
optionally equipped with gold contacts
– AC/DC versions: 12 V, 24 V, 48 V, 60 V, 110 V, 230 V – Logical or standard sockets
– Output: 1 c/o (SPDT) contacts (6 A), standard and goldpla- – Cadmium-free contact material
– Width of socket: 15,5 mm
ted contacts – Pluggable function modules
– Cadmium-free contact material
– All sockets with LED – Reverse polarity protection/Free wheeling diode
– Screw and spring connection terminals – LED indication
– Jumper bar (red, black, blue), marker and separator availa- – RC elements
– Overvoltage protection
ble as accessories

5

1 1

2 2
3
4 3
4
4
4
6
1 Socket
7 2 Pluggable function module
3 Interface relay
1 Output contacts 4 Holder
2 Socket 4 Marker label
3 Relay holder
4 Marker
4 Interface relay
6 LED green: Control supply voltage applied
7 Control supply voltage

5/5 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
