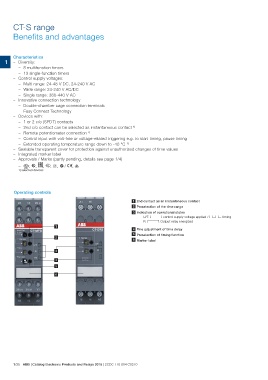

Page 46 - EPR Catalog 2015

CT-S range
Benefits and advantages

Characteristics

1 – Diversity:

– 8 multifunction timers
– 13 single-function timers
– Control supply voltages:
– Multi range: 24-48 V DC, 24-240 V AC
– Wide range: 24-240 V AC/DC
– Single range: 380-440 V AC
– Innovative connection technology
– Double-chamber cage connection terminals
– Easy Connect Technology
– Devices with:
– 1 or 2 c/o (SPDT) contacts
– 2nd c/o contact can be selected as instantaneous contact 1)
– Remote potentiometer connection 1)
– Control input with volt-free or voltage-related triggering e.g. to start timing, pause timing
– Extended operating temperature range down to -40 °C 1)
– Sealable transparent cover for protection against unauthorized changes of time values
– Integrated marker label
– Approvals / Marks (partly pending, details see page 1/4)

– A, C, , E, K, L / a, b

1) selected devices

Operating controls 1 2nd contact as an instantaneous contact
2 Preselection of the time range
1 3 Indication of operational states

2 U/T: V control supply voltage applied / W timing
3 R: V Output relay energized
4
5 4 Fine adjustment of time delay
6 4 Preselection of timing function

Marker label
