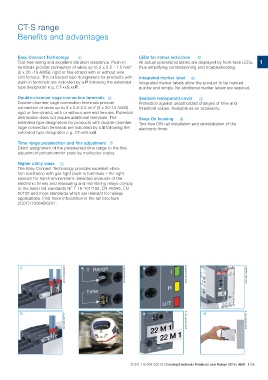

CT-S range
Benefits and advantages

Easy Connect Technology 1 LEDs for status indication 5
All actual operational states are displayed by front-face LEDs,
Tool-free wiring and excellent vibration resistance. Push-in thus simplifying commissioning and troubleshooting. 1

terminals provide connection of wires up to 2 x 0.5 - 1.5 mm² Integrated marker label 6
Integrated marker labels allow the product to be marked
(2 x 20 -16 AWG), rigid or fine-strand with or without wire quickly and simply. No additional marker labels are required.

end ferrules. The extended type designators for products with

push-in terminals are indicated by a P following the extended

type designator e.g. CT-xxS.xxP.

Double-chamber cage connection terminals 2 Sealable transparent cover 7
Double-chamber cage connection terminals provide Protection against unauthorized changes of time and
connection of wires up to 2 x 0.5-2.5 mm² (2 x 20-14 AWG) threshold values. Available as an accessory.
rigid or fine-strand, with or without wire end ferrules. Potential
distribution does not require additional terminals. The Snap-On housing 8
extended type designators for products with double-chamber Tool-free DIN rail installation and deinstallation of the
cage connection terminals are indicated by a S following the electronic timer.
extended type designator e.g. CT-xxS.xxS.

Time range preselection and fine adjustment 3
Direct assignment of the preselected time range to the fine
adjustment potentiometer scale by multicolor scales.

Higher utility class 4
The Easy Connect Technology provides excellent vibra-
tion resistance with gas tight push-in terminals – the right
solution for harsh environment. Selected products of the
electronic timers and measuring and monitoring relays comply
to the latest rail standards NF F 16-101/102, EN 45545, EN
50155 and more standards which are relevant for railway
applications. Find more inforamtion in the rail brochure
2CDC110084B0201.
