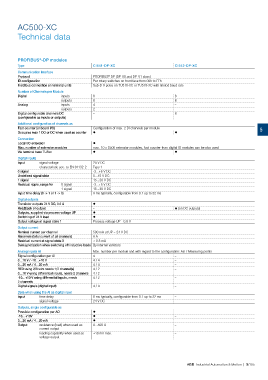

AC500-XC

Technical data

PROFIBUS -DP modules
®
Type CI541-DP-XC CI542-DP-XC
Communication Interface
®
Protocol PROFIBUS DP (DP-V0 and DP-V1 slave)
ID confguration Per rotary switches on front face from 00h to FFh
Field bus connection on terminal units Sub-D 9 poles on TU510-XC or TU518-XC with limited baud rate
Number of Channels per Module
Digital inputs 8 8
outputs 8 8
Analog inputs 4 –
outputs 2 –
Digital confgurable channels DC – 8
(confgurable as inputs or outputs)
Additional confguration of channels as
Fast counter (onboard I/O) Configuration of max. 2 DI channels per module 5
Occupies max 1 DO or DC when used as counter ? ?
Connection
Local I/O extension ?
Max. number of extension modules max. 10 x S500 extension modules, fast counter from digital IO modules can be also used
Via terminal base TU5xx ? ?
Digital inputs
Input signal voltage 24 V DC
characteristic acc. to EN 61132-2 Type 1
0 signal -3...+5 V DC
Undefned signal state 5...15 V DC
1 signal 15...30 V DC
Residual ripple, range for 0 signal -3...+5 V DC
1 signal 15...30 V DC
Input time delay (0 -> 1 or 1 -> 0) 8 ms typically, configurable from 0.1 up to 32 ms
Digital outputs
Transistor outputs 24 V DC, 0.5 A ?
Readback of output – ? (on DC outputs)
Outputs, supplied via process voltage UP ?
Switching of 24 V load ?
Output voltage at signal state 1 Process voltage UP - 0.8 V
Output current
Nominal current per channel 500 mA at UP = 24 V DC
Maximum (total current of all channels) 8 A
Residual current at signal state 0 < 0.5 mA
Demagnetization when switching off inductive loads By internal varistors
Analog Inputs AI Max. number per module and with regard to the configuration: AIs / Measuring points
Signal confguration per AI 4 –
0…10 V / -10…+10 V 4 / 4 –
0…20 mA / 4…20 mA 4 / 4 –
RTD using 2/3 wire needs 1/2 channel(s) 4 / 2 –
0…10 V using differential inputs, needs 2 channels 4 / 2 –
-10…+10 V using differential inputs, needs 4 / 2 –
2 channels
Digital signals (digital input) 4 / 4 –
Data when using the AI as digital input
Input time delay 8 ms typically, configurable from 0.1 up to 32 ms –
signal voltage 24 V DC –
Outputs, single confgurable as
Possible confguration per AO ? –
-10…+10V ? –
0…20 mA / 4…20 mA ? –
Output resistance (load) when used as 0...500 O –
current output
loading capability when used as ±10 mA max. –
voltage output

ABB Industrial Automation & Motion | 5/105
