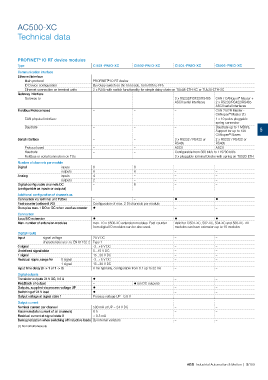

AC500-XC

Technical data

PROFINET IO RT device modules
®
Type CI501-PNIO-XC CI502-PNIO-XC CI504-PNIO-XC CI506-PNIO-XC
Communication interface
Ethernet Interface
Main protocol PROFINET IO RT device
®
ID Device configuration By rotary switch on the front side, from 00h to FFh
Ethernet connection on terminal units 2 x RJ45 with switch functionality for simple daisy chain on TU508-ETH-XC or TU520-ETH-XC
Gateway Interface
Gateway to – – 3 x RS232/RS422/RS485 CAN / CANopen Master +
®
ASCII serial interfaces 2 x RS232/RS422/RS485
ASCII serial interfaces
Fieldbus Protocol used – – – CAN 2A/2B Master -
CANopen Master (1)
®
CAN physical interface – – – 1 x 10 poles pluggable
spring connector
Baudrate – – – Baudrate up to 1 MBit/s,
Support for up to 126 5
CANopen Slaves
®
Serial interface – – 3 x RS232 / RS422 or 2 x RS232 / RS422 or
RS485 RS485
Protocol used – – ASCII ASCII
Baudrate – – Configurable from 300 bit/s to 115200 bit/s
Fieldbus or serial connection on TUs – – 3 x pluggable terminal blocks with spring on TU520-ETH
Number of channels per module
Digital inputs 8 8 – –
outputs 8 8 – –
Analog inputs 4 – – –
outputs 2 – – –
Digital confgurable channels DC – 8 – –
(confgurable as inputs or outputs)
Additional confguration of channels as
Connection via terminal unit TU5xx – – ? ?
Fast counter (onboard I/O) Configuration of max. 2 DI channels per module – –
Occupies max. 1 DO or DC when used as counter ? – –
Connection
Local I/O extension ? ? ?
Max. number of extension modules max. 10 x S500-XC extension modules. Fast counter Valid for CI501-XC, 502-XC, 504-XC and 506-XC. All
from digital IO modules can be also used. modules can have extension up to 10 modules
Digital inputs
Input signal voltage 24 V DC – –
characteristic acc. to EN 61132-2 Type 1 – –
0 signal -3...+5 V DC – –
Undefned signal state 5...15 V DC – –
1 signal 15...30 V DC – –
Residual ripple, range for 0 signal -3...+5 V DC – –
1 signal 15...30 V DC – –
Input time delay (0 -> 1 or 1 -> 0) 8 ms typically, configurable from 0.1 up to 32 ms – –
Digital outputs
Transistor outputs 24 V DC, 0.5 A ? – –
Readback of output – ? (on DC outputs) – –
Outputs, supplied via process voltage UP ? – –
Switching of 24 V load ? – –
Output voltage at signal state 1 Process voltage UP - 0.8 V – –
Output current
Nominal current per channel 500 mA at UP = 24 V DC – –
Maximum (total current of all channels) 8 A – –
Residual current at signal state 0 < 0.5 mA – –
Demagnetization when switching off inductive loads By internal varistors – –
