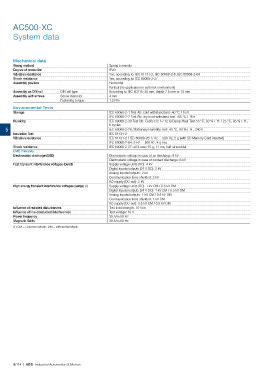

AC500-XC

System data

Mechanical data
Wiring method Spring terminals
Degree of protection IP20
Vibration resistance Yes, according to: IEC 61131-2, IEC 60068-2-6, IEC 60068-2-64
Shock resistance Yes, according to: IEC 60068-2-27
Assembly position Horizontal
Vertical (no application in salt mist environment)
Assembly on DIN rail DIN rail type According to IEC 60715: 35 mm, depth 7.5 mm or 15 mm
Assembly with screws Screw diameter 4 mm
Fastening torque 1.2 Nm
Environmental Tests
Storage IEC 60068-2-1 Test Ab: cold withstand test -40 °C / 16 h
IEC 60068-2-2 Test Bb: dry heat withstand test +85 °C / 16 h
Humidity IEC 60068-2-30 Test Db: Cyclic (12 h / 12 h) Damp-Heat Test 55 °C, 93 % r. H. / 25 °C, 95 % r. H.,
6 cycles
5 IEC 60068-2-78, Stationary Humidity Test: 40 °C, 93 % r. H., 240 h
Insulation Test IEC 61131-2
Vibration resistance IEC 61131-2 / IEC 60068-26: 5 Hz ... 500 Hz, 2 g (with SD Memory Card inserted)
IEC 60068-2-64: 5 Hz ... 500 Hz, 4 g rms
Shock resistance IEC 60068-2-27: all 3 axes 15 g, 11 ms, half-sinusoidal
EMC Immunity
Electrostatic discharge (ESD) Electrostatic voltage in case of air discharge: 8 kV
Electrostatic voltage in case of contact discharge: 6 kV
Fast transient interference voltages (burst) Supply voltage units (DC): 4 kV
Digital inputs/outputs (24 V DC): 2 kV
Analog inputs/outputs: 2 kV
Communication lines shielded: 2 kV
I/O supply (DC-out): 2 kV
High energy transient interference voltages (surge) (1) Supply voltage units (DC): 1 kV CM / 0.5 kV DM
Digital inputs/outputs (24 V DC): 1 kV CM / 0.5 kV DM
Analog inputs/outputs: 1 kV CM / 0.5 kV DM
Communication lines shielded: 1 kV CM
I/O supply (DC-out): 0,5 kV CM / 0.5 kV DM
Infuence of radiated disturbances Test field strength: 10 V/m
Infuence of line-conducted interferences Test voltage: 10 V
Power frequency 30 A/m 50 Hz
Magnetic felds 30 A/m 60 Hz
(1) CM = Common Mode, DM = Differential Mode.
