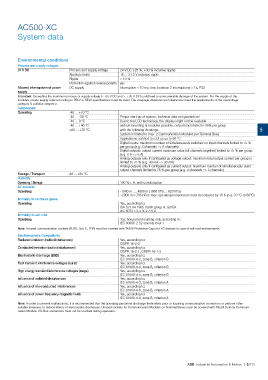

AC500-XC

System data

Environmental conditions
Process and supply voltages
24 V DC Process and supply voltage 24 V DC (-25 %, +30 % inclusive ripple)
Absolute limits 18 ... 31.2 V inclusive ripple
Ripple < 10 %
Protection against reverse polarity yes
Allowed interruptions of power DC supply Interruption < 10 ms, time between 2 interruptions > 1s, PS2
supply
Important: Exceeding the maximum process or supply voltage (< -35 V DC and > + 35 V DC) could lead to unrecoverable damage of the system. For the supply of the
modules, power supply units according to PELV or SELV specifcations must be used. The creepage distances and clearances meet the requirements of the overvoltage
category II, pollution degree 2.
Temperature
Operating -40 ... +70 °C
-40 ... -30 °C Proper start-up of system; technical data not guaranteed
-40 ... 0 °C Due to the LCD technology, the display might not be readable
-40 ... +40 °C vertical mounting of modules possible, output load limited to 50% per group
+60 ... +70 °C with the following deratings: 5
System is limited to max. 2 Communication Modules per Terminal Base
Applications certified for cULus up to 60 °C
Digital inputs: maximum number of simultaneously switched on input channels limited to 75 %
per group (e.g. 8 channels => 6 channels)
Digital outputs: output current maximum value (all channels together) limited to 75 % per group
(e.g. 8 A => 6 A)
Analog outputs only if configured as voltage output: maximum total output current per group is
limited to 75 % (e.g. 40 mA => 30 mA)
Analog outputs only if configured as current output: maximum number of simultaneously used
output channels limited to 75 % per group (e.g. 4 channels => 3 channels)
Storage / Transport -40 ... +85 °C
Humidity
Operating / Storage 100 % r. H. with condensation
Air pressure
Operating -1000 m .... 4000 m (1080 hPa ... 620 hPa)
>2000 m (<795 hPa): max. operating temperature must be reduced by 10 K (e.g. 70 °C to 60°C)
Immunity to corrosive gases
Operating Yes, according to:
ISA S71.04.1985 Harsh group A, G3/GX
IEC 60721-3-3 3C2 / 3C3
Immunity to salt mist
Operating Yes, horizontal mounting only, according to:
IEC 60068-2-52 severity level 1
Note: Unused communication sockets (RJ45, Sub-D, FBP) must be covered with TA535 Protective Caps for XC devices in case of salt mist environments.
Electromagnetic Compatibility
Radiated emission (radio disturbances) Yes, according to:
CISPR 16-2-3
Conducted emission (radio disturbances) Yes, according to:
CISPR 16-2-1, CISPR 16-1-2
Electrostatic discharge (ESD) Yes, according to:
IEC 61000-4-2, zone B, criterion B
Fast transient interference voltages (burst) Yes, according to:
IEC 61000-4-4, zone B, criterion B
High energy transient interference voltages (surge) Yes, according to:
IEC 61000-4-5, zone B, criterion B
Infuence of radiated disturbances Yes, according to:
IEC 61000-4-3, zone B, criterion A
Infuence of line-conducted interferences Yes, according to:
IEC 61000-4-6, zone B, criterion A
Infuence of power frequency magnetic felds Yes, according to:
IEC 61000-4-8, zone B, criterion A
Note: In order to prevent malfunctions, it is recommended that the operating personnel discharge themselves prior to touching communication connectors or perform other
suitable measures to reduce effects of electrostatic discharges. Unused sockets for Communication Modules on Terminal Bases must be covered with TA524 Dummy Communi-
cation Module. I/O-Bus connectors must not be touched during operation.
