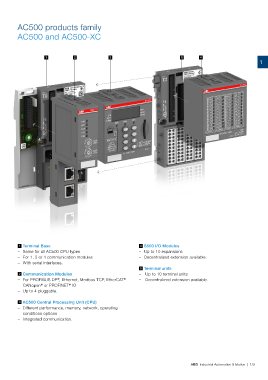

AC500 products family
AC500 and AC500-XC
1 2 3 5 4
1
Terminal Base S500 I/O Modules
4
1
– Same for all AC500 CPU types – Up to 10 expansions
– For 1, 2 or 4 communication modules – Decentralized extension available.
– With serial interfaces.
Terminal units
5
Communication Modules – Up to 10 terminal units
2
®
®
– For PROFIBUS DP , Ethernet, Modbus TCP, EtherCAT – Decentralized extension available.
CANopen or PROFINET IO
®
®
– Up to 4 pluggable.
AC500 Central Processing Unit (CPU)
3
– Different performance, memory, network, operating
conditions options
– Integrated communication.
ABB Industrial Automation & Motion | 1/9
