P. 15

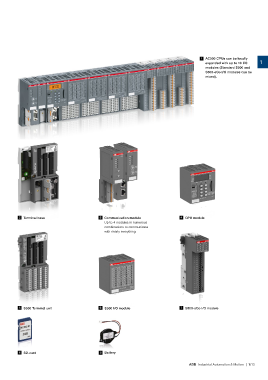

AC500 CPUs can be locally
1
expanded with up to 10 I/O 1
modules (Standard S500 and
S500-eCo I/O modules can be
mixed).
Terminal base Communication module CPU module
4
2
3
Up to 4 modules in numerous
combinations to communicate
with nearly everything
6
5
7
S500 Terminal unit S500 I/O module S500-eCo I/O module
SD-card Battery
9
8
