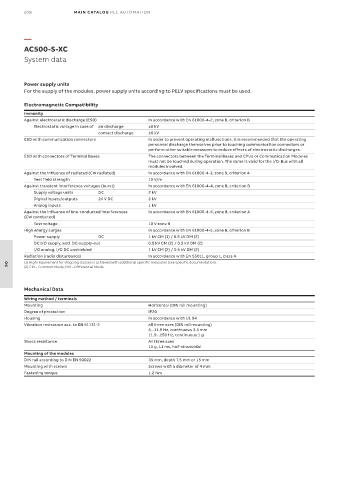

Page 210 - PLC Automation

208 MAIN CATALOG PLC AUTOMATION

—
AC500-S-XC
System data

Power supply units
For the supply of the modules, power supply units according to PELV specifications must be used.

Electromagnetic Compatibility
Immunity
Against electrostatic discharge (ESD) In accordance with EN 61000-4-2, zone B, criterion B
Electrostatic voltage in case of air discharge ±8 kV
contact discharge ±6 kV
ESD with communication connectors In order to prevent operating malfunctions, it is recommended that the operating
personnel discharge themselves prior to touching communication connectors or
perform other suitable measures to reduce effects of electrostatic discharges.
ESD with connectors of Terminal Bases The connectors between the Terminal Bases and CPUs or Communication Modules
must not be touched during operation. The same is valid for the I/O-Bus with all
modules involved.
Against the influence of radiated (CW radiated) In accordance with EN 61000-4-3, zone B, criterion A
Test field strength 10 V/m
Against transient interference voltages (burst) In accordance with EN 61000-4-4, zone B, criterion B
Supply voltage units DC 2 kV
Digital inputs/outputs 24 V DC 2 kV
Analog inputs 1 kV
Against the influence of line-conducted interferences In accordance with EN 61000-4-6, zone B, criterion A
(CW conducted)
Test voltage 10 V zone B
High energy surges In accordance with EN 61000-4-5, zone B, criterion B
Power supply DC 1 kV CM (1) / 0.5 kV DM (2)
DC I/O supply, add. DC-supply-out 0.5 kV CM (2) / 0.5 kV DM (2)
I/O analog, I/O DC unshielded 1 kV CM (2) / 0.5 kV DM (2)
Radiation (radio disturbance) In accordance with EN 55011, group 1, class A
(1) High requirement for shipping classes is achieved with additional specific measures (see specific documentation).
(2) CM = Common Mode; DM = Differential Mode.
06

Mechanical Data
Wiring method / terminals
Mounting Horizontal (DIN rail mounting)
Degree of protection IP20
Housing In accordance with UL 94
Vibration resistance acc. to EN 61131-2 all three axes (DIN rail mounting)
5...11.9 Hz, continuous 3.5 mm
11.9...150 Hz, continuous 1 g
Shock resistance All three axes
15 g, 11 ms, half-sinusoidal
Mounting of the modules
DIN rail according to DIN EN 50022 35 mm, depth 7.5 mm or 15 mm
Mounting with screws Screws with a diameter of 4 mm
Fastening torque 1.2 Nm
