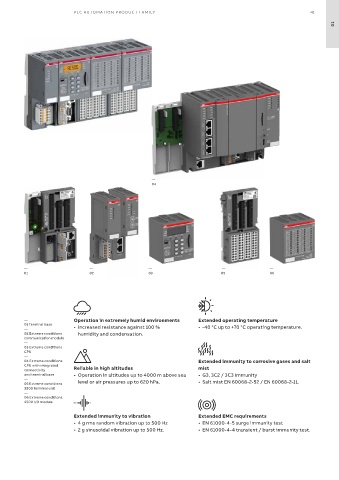

PLC AUTOMATION PRODUCT FAMILY 41

01

—
04

— — — — —
01 02 03 05 06

— Operation in extremely humid environments Extended operating temperature
01 Terminal base • Increased resistance against 100 % • -40 °C up to +70 °C operating temperature.
—
02 Extreme conditions humidity and condensation.
communication module
—
03 Extreme conditions
CPU
—
04 Extreme conditions Extended immunity to corrosive gases and salt
CPU with integrated Reliable in high altitudes mist
connectivity
and terminal base • Operation in altitudes up to 4000 m above sea • G3, 3C2 / 3C3 immunity
— level or air pressures up to 620 hPa. • Salt mist EN 60068-2-52 / EN 60068-2-11.
05 Extreme conditions
S500 terminal unit
—
06 Extreme conditions
S500 I/O module
Extended immunity to vibration Extended EMC requirements
• 4 g rms random vibration up to 500 Hz • EN 61000-4-5 surge immunity test
• 2 g sinusoidal vibration up to 500 Hz. • EN 61000-4-4 transient / burst immunity test.
