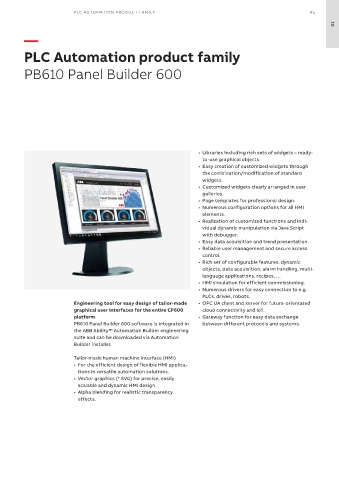

PLC AUTOMATION PRODUCT FAMILY 45

01
—

PLC Automation product family

PB610 Panel Builder 600

• Libraries including rich sets of widgets – ready-
to-use graphical objects.
• Easy creation of customized widgets through
the combination/modification of standard
widgets.
• Customized widgets clearly arranged in user
galleries.
• Page templates for professional design.
• Numerous configuration options for all HMI
elements.
• Realization of customized functions and indi-
vidual dynamic manipulation via Java Script
with debugger.
• Easy data acquisition and trend presentation.
• Reliable user management and secure access
control.
• Rich set of configurable features: dynamic
objects, data acquisition, alarm handling, multi-
language applications, recipes, …
• HMI simulation for efficient commissioning.
• Numerous drivers for easy connection to e.g.
PLCs, drives, robots.
Engineering tool for easy design of tailor-made • OPC UA client and server for future-orientated
graphical user interfaces for the entire CP600 cloud connectivity and IoT.
platform • Gateway function for easy data exchange
PB610 Panel Builder 600 software is integrated in between different protocols and systems.
the ABB Ability™ Automation Builder engineering
suite and can be downloaded via Automation
Builder installer.

Tailor-made human machine interface (HMI)
• For the efficient design of flexible HMI applica-
tions in versatile automation solutions.
• Vector graphics (*.SVG) for precise, easily
scalable and dynamic HMI design.
• Alpha blending for realistic transparency
effects.
