50 MAIN CATALOG PLC AUTOMATION

01
—

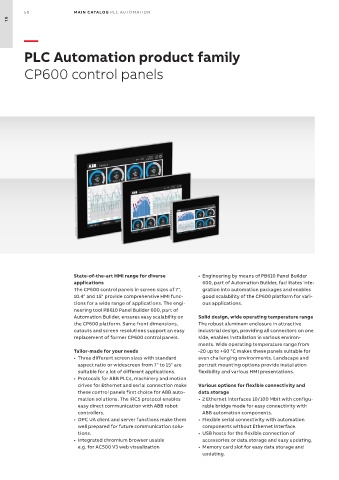

PLC Automation product family

CP600 control panels

State-of-the-art HMI range for diverse • Engineering by means of PB610 Panel Builder
applications 600, part of Automation Builder, facilitates inte-
The CP600 control panels in screen sizes of 7", gration into automation packages and enables
10.4" and 15" provide comprehensive HMI func- good scalability of the CP600 platform for vari-
tions for a wide range of applications. The engi- ous applications.
neering tool PB610 Panel Builder 600, part of
Automation Builder, ensures easy scalability on Solid design, wide operating temperature range
the CP600 platform. Same front dimensions, The robust aluminum enclosure in attractive
cutouts and screen resolutions support an easy industrial design, providing all connectors on one
replacement of former CP600 control panels. side, enables installation in various environ-
ments. Wide operating temperature range from
Tailor-made for your needs -20 up to +60 °C makes these panels suitable for
• Three different screen sizes with standard even challenging environments. Landscape and
aspect ratio or widescreen from 7" to 15" are portrait mounting options provide installation
suitable for a lot of different applications. flexibility and various HMI presentations.
• Protocols for ABB PLCs, machinery and motion
drives for Ethernet and serial connection make Various options for flexible connectivity and
these control panels first choice for ABB auto- data storage
mation solutions. The IRC5 protocol enables • 2 Ethernet interfaces 10/100 Mbit with configu-
easy direct communication with ABB robot rable bridge mode for easy connectivity with
controllers. ABB automation components.
• OPC UA client and server functions make them • Flexible serial connectivity with automation
well prepared for future communication solu- components without Ethernet interface.
tions. • USB hosts for the flexible connection of
• Integrated chromium browser usable accessories or data storage and easy updating.
e.g. for AC500 V3 web visualization • Memory card slot for easy data storage and
updating.
