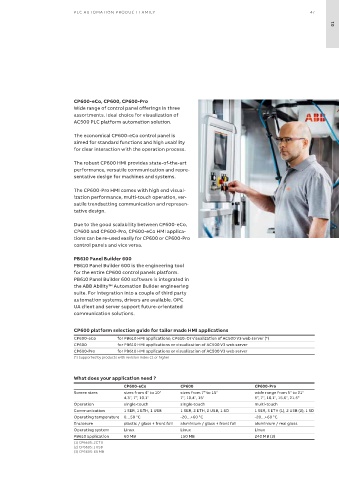

PLC AUTOMATION PRODUCT FAMILY 47

01

CP600-eCo, CP600, CP600-Pro
Wide range of control panel offerings in three
assortments. Ideal choice for visualization of
AC500 PLC platform automation solution.

The economical CP600-eCo control panel is
aimed for standard functions and high usability
for clear interaction with the operation process.

The robust CP600 HMI provides state-of-the-art
performance, versatile communication and repre-
sentative design for machines and systems.

The CP600-Pro HMI comes with high end visual-
ization performance, multi-touch operation, ver-
satile trendsetting communication and represen-
tative design.
Due to the good scalability between CP600-eCo,
CP600 and CP600-Pro, CP600-eCo HMI applica-
tions can be re-used easily for CP600 or CP600-Pro
control panels and vice versa.

PB610 Panel Builder 600
PB610 Panel Builder 600 is the engineering tool
for the entire CP600 control panels platform.
PB610 Panel Builder 600 software is integrated in
the ABB Ability™ Automation Builder engineering
suite. For integration into a couple of third party
automation systems, drivers are available. OPC
UA client and server support future-orientated
communication solutions.

CP600 platform selection guide for tailor made HMI applications
CP600-eCo for PB610 HMI applications; CP610: Or visualization of AC500 V3 web server (*)
CP600 for PB610 HMI applications or visualization of AC500 V3 web server
CP600-Pro for PB610 HMI applications or visualization of AC500 V3 web server
(*) Supported by products with revision index C1 or higher

What does your application need ?
CP600-eCo CP600 CP600-Pro
Screen sizes sizes from 4" to 10" sizes from 7" to 15" wide range from 5" to 21"
4.3", 7", 10.1" 7", 10.4", 15" 5", 7", 10.1", 15.6", 21.5"
Operation single-touch single-touch multi-touch
Communication 1 SER, 1 ETH, 1 USB 1 SER, 2 ETH, 2 USB, 1 SD 1 SER, 3 ETH (1), 2 USB (2), 1 SD
Operating temperature 0…50 °C -20…+60 °C -20…+60 °C
Enclosure plastic / glass + front foil aluminium / glass + front foil aluminium / real glass
Operating system Linux Linux Linux
PB610 application 60 MB 150 MB 240 MB (3)
(1) CP6605: 2 ETH
(2) CP6605: 1 USB
(3) CP6605: 60 MB
