P. 50

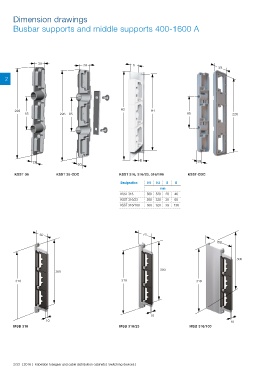

Dimension drawings
Busbar supports and middle supports 400-1600 A
39
39 D
39
2
226 H2 H1
85 226 85 85 226
B 20
20
20
KSST 36 KSST 36-CDC KSST 316, 316/23, 316/100 KSST-CDC
Designation H1 H2 B D
mm
KSST 316 300 320 20 46
KSST 316/23 300 320 20 60
KSST 316/100 300 320 39 136
62 76
152
300
300
300
A
318 318 318
10
10 10
MSB 316 MSB 316/23 MSB 316/100
2/33 | 2016 | Kabeldon fusegear and cable distribution cabinets | Switching devices |
