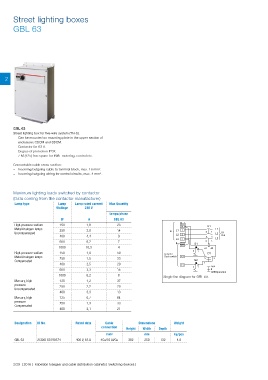

Street lighting boxes

GBL 63

2

GBL 63
Street lighting box for five-wire system (TN-S).
− Can be mounted on mounting plate in the upper section of
enclosures CDCM and SDCM.
− Contactor for 63 A.
− Degree of protection IP3X.
− 7 M (125) free space for kWh metering, control etc.
Connectable cable cross-section:
− Incoming/outgoing cable to terminal block, max. 16 mm².
− Incoming/outgoing wiring for control circuits, max. 4 mm².

Maximum lighting loads switched by contactor
(Data coming from the contactor manufacturer)
Lamp type Lamp Lamp rated current Max Quantity
Wattage 230 V
lamps/phase
W A GBL 63
High-pressure sodium 150 1,8 23
Metall-halogen lamps 250 3,0 14
Uncompensated
400 4,4 9
600 6,2 7
1000 10,3 4
High-pressure sodium 150 1,0 50
Metall-halogen lamps 250 1,5 33
Compensated
400 2,5 20
600 3,3 15
1000 6,2 8
Single line diagram for GBL 63.
Mercury, high 125 1,2 37
pressure 250 2,2 20
Uncompensated
400 3,3 13
Mercury, high 125 0,7 64
pressure 250 1,3 33
Compensated
400 2,1 21

Designation ID No. Rated data Cable Dimensions Weight
connection Height Width Depth
mm² mm kg/pcs
GBL 63 2CGX0 63190374 400 V, 63 A 4Cu/16 Al/Cu 382 250 132 4.8

2/29 | 2016 | Kabeldon fusegear and cable distribution cabinets | Switching devices |
