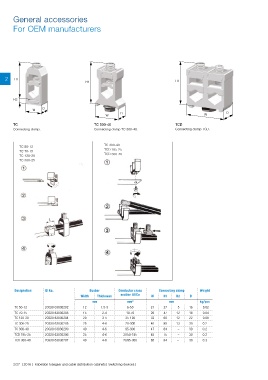

Page 44 - Kabeldon

General accessories

For OEM manufacturers

2 H1
H1 H1

H2

D
W
D D
W W
TC TC 300-40 TCD
Connecting clamp. Connecting clamp TC 300-40. Connecting clamp TCD.

TC 300-40
TC 50-12
TC 70-15 TCD 185-25
TC 120-20 TCD 300-40
TC 300-25

Designation ID No. Busbar Conductor cross Connecting clamp Weight
Width Thickness section Al/Cu W H1 H2 D
mm mm² mm kg/pcs
TC 50-12 2CGX0 63030202 12 1.5-3 6-50 21 27 5 16 0.02
TC 70-15 2CGX0 63030203 15 2-4 10-70 26 47 12 16 0.04
TC 120-20 2CGX0 63030204 20 3-5 35-120 32 60 12 22 0.08
TC 300-25 2CGX0 63030205 25 4-6 70-300 40 85 13 30 0.2
TC 300-40 2CGX0 63030209 40 4-6 95-300 47 84 – 30 0.2
TCD 185-25 2CGX0 63030206 25 4-6 2//50-185 48 75 – 30 0.2
TCD 300-40 2CGX0 63030207 40 4-6 2//95-300 65 84 – 30 0.3

2/27 | 2016 | Kabeldon fusegear and cable distribution cabinets | Switching devices |
