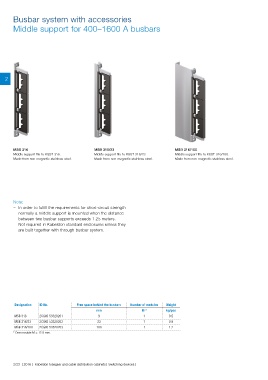

Busbar system with accessories

       Middle support for 400–1600 A busbars












   2


















       MSB 316                             MSB 316/23                          MSB 316/100
       Middle support fits to KSST 316.     Middle support fits to KSST 316/23.     Middle support fits to KSST 316/100.
       Made from non-magnetic stainless steel.  Made from non-magnetic stainless steel.  Made from non-magnetic stainless steel.










       Note:
          − In order to fulfill the requirements for short-circuit strength
         normally a middle support is mounted when the distance
         between two busbar supports exceeds 1.25 meters.
          − Not required in Kabeldon standard enclosures unless they
         are built together with through busbar system.



















        Designation  ID No.        Free space behind the busbars  Number of modules  Weight
                                            mm                  M *        kg/pcs
        MSB 316    2CGX0 53320201            9                   1          0.5
        MSB 316/23  2CGX0 53320202          23                   1          0.8
        MSB 316/100  2CGX0 53320203         100                   1         1.2
       * One module M = 12.5 mm.






       2/23  | 2016 |  Kabeldon fusegear and cable distribution cabinets | Switching devices |
