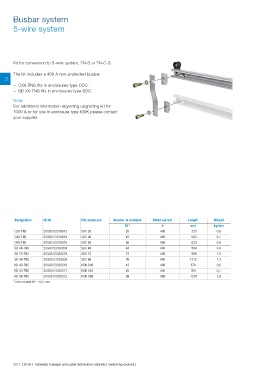

P. 38
Busbar system
5-wire system
Kit for conversion to 5-wire system, TN-S or TN-C-S.
The kit includes a 400 A non-protected busbar.
2
− CXX-TNS fits in enclosures type CDC.
− SD XX-TNS fits in enclosures type SDC.
Note:
For additional information regarding upgrading kit for
1000 A or for use in enclosure type KSIK please contact
your supplier.
Designation ID No. Fits enclosure Number of modules Rated current Length Weight
M * A mm kg/pcs
C20-TNS 2CGX0 53310613 CDC 20 20 400 333 0.6
C40-TNS 2CGX0 53310614 CDC 40 40 400 583 0.7
C60-TNS 2CGX0 53310615 CDC 60 60 400 833 0.9
SD 48-TNS 2CGX0 53320208 SDC 48 48 400 584 0.9
SD 73-TNS 2CGX0 53320219 SDC 73 73 400 898 1.0
SD 98-TNS 2CGX0 53320209 SDC 98 98 400 1212 1.2
KD 43-TNS 2CGX0 53320210 KSIK 043 43 400 570 0,6
KD 63-TNS 2CGX0 53320211 KSIK 063 63 400 810 0,7
KD 98-TNS 2CGX0 53320212 KSIK 098 98 400 1270 1,0
* One module M = 12.5 mm.
2/21 | 2016 | Kabeldon fusegear and cable distribution cabinets | Switching devices |
