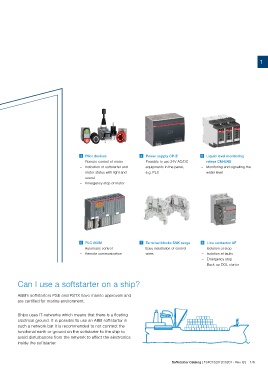

Page 11 - Catalog Softstarters PSR PSE PSTX

1 1

3
Pilot devices 4 Power supply CP-E 5 Liquid level monitoring
– Remote control of motor – Possible to use 24V AC/DC relays CM-ENS
– Indication of softstarter and equipments in the panel, – Monitoring and signalling the
motor status with light and e.g. PLC water level
on
off
sound
– Emergency stop of motor

Terminal blocks
SNK series

6
PLC 800M 7 Terminal blocks SNK range 8 Line contactor AF
– Automatic control – Easy installation of control – Isolation at stop
– Remote communication wires – Isolation at faults
– Emergency stop
– Back-up DOL starter

Can I use a softstarter on a ship?

ABB’s softstarters PSE and PSTX have marine approvals and
are certified for marine environment.

Ships uses IT-networks which means that there is a floating
electrical ground. It is possible to use an ABB softstarter in
such a network but it is recommended to not connect the
functional earth or ground on the softstarter to the ship to
avoid disturbances from the network to effect the electronics
inside the softstarter.

1/8 1SFC132012C0201 - Rev. B | Softstarter Catalog Softstarter Catalog | 1SFC132012C0201 - Rev. B | 1/9
