ABB softstarters

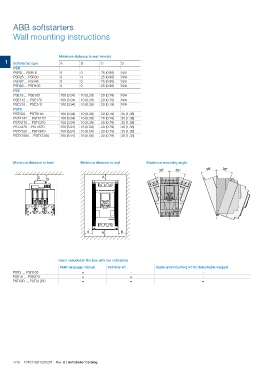

Wall mounting instructions

Minimum distance to wall mm (in)
1 Softstarter, type A B C D
PSR
PSR3 ... PSR16 0 0 25 (0.98) N/A
PSR25 ... PSR30 0 0 25 (0.98) N/A
PSR37 ... PSR45 0 0 25 (0.98) N/A
PSR60 ... PSR105 0 0 25 (0.98) N/A
PSE
PSE18 ... PSE105 100 (3.94) 10 (0.39) 20 (0.79) N/A
PSE142 ... PSE170 100 (3.94) 10 (0.39) 20 (0.79) N/A
PSE210 ... PSE370 100 (3.94) 10 (0.39) 20 (0.79) N/A
PSTX
PSTX30 ... PSTX105 100 (3.94) 10 (0.39) 20 (0.79) 35 (1.38)
PSTX142 ... PSTX170 100 (3.94) 10 (0.39) 20 (0.79) 35 (1.38)
PSTX210 ... PSTX370 100 (3.94) 10 (0.39) 20 (0.79) 35 (1.38)
PSTX470 ...PSTX570 150 (5.91) 15 (0.59) 20 (0.79) 35 (1.38)
PSTX720 ... PSTX840 150 (5.91) 15 (0.59) 20 (0.79) 35 (1.38)
PSTX1050 ... PSTX1250 150 (5.91) 15 (0.59) 20 (0.79) 35 (1.38)

Minimum distance to front Minimum distance to wall Maximum mounting angle
30 O 30 O 30 30 O 30 30 O 30 30 O
O
O
O
C D A

B A B

Items included in the box with the softstarter
Multi-language manual Terminal kit Cable and mounting kit for detachable keypad
PSR3 … PSR105 • - -
PSE18 … PSE370 • • -
PSTX30 … PSTX1250 • • •
