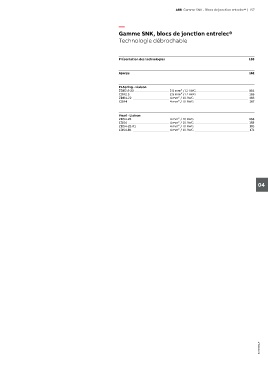

ABB Gamme SNK - Blocs de jonction entrelec® | 157
—
Gamme SNK, blocs de jonction entrelec®
Technologie débrochable
Présentation des technologies 158
Aperçu 162
PI-Spring - Liaison
ZDK2.5-22 ______________________ 2.5 mm² / 12 AWG _________________________________ 164
CDK2.5 _________________________ 2.5 mm² / 12 AWG _________________________________ 165
ZDK4-22 _______________________ 4 mm² / 10 AWG __________________________________ 166
CDK4 __________________________ 4 mm² / 10 AWG __________________________________ 167
Vissé - Liaison
ZDS4-22 ________________________ 4 mm² / 10 AWG __________________________________ 168
CDS4 __________________________ 4 mm² / 10 AWG __________________________________ 169
ZDS4-22-R1 _____________________ 4 mm² / 10 AWG __________________________________ 170
CDS4-R1 _______________________ 4 mm² / 10 AWG ___________________________________171
04
Summary_4
