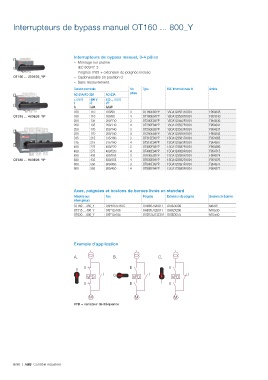

Interrupteurs de bypass manuel OT160 ... 800_Y

Interrupteurs de bypass manuel, 3-4 pôles
– Montage sur platine
– IEC 60947-3
– Poignée IP65 + extension de poignée incluse
OT160 ... 250E03_YP – Cadenassable en position O
– Sans recouvrement.
Tension nominale Nb Type Réf. Internationale @ Article
AC-21A/AC-22A AC-23A pôles
≤ 415 V 400 V 400 ... 415 V
I S I/P
A kVA A/kW
160 110 160/90 3 OT160E03YP 1SCA123551R1001 F954335
OT315 ... 400E03_YP 160 110 160/90 4 OT160E04YP 1SCA123556R1001 F954340
200 135 200/110 3 OT200E03YP 1SCA123552R1001 F954336
200 135 200/110 4 OT200E04YP 1SCA123557R1001 F954341
250 170 250/140 3 OT250E03YP 1SCA123553R1001 F954337
250 170 250/140 4 OT250E04YP 1SCA123558R1001 F954342
315 215 315/160 3 OT315E03YP 1SCA123581R1001 F954365
315 215 315/160 4 OT315E04YP 1SCA123583R1001 F954367
400 275 400/220 3 OT400E03YP 1SCA123582R1001 F954366
400 275 400/220 4 OT400E04YP 1SCA124026R1001 F954715
630 435 630/355 3 OT630E03YP 1SCA123590R1001 F954374
OT630 ... 800E03_YP 630 435 630/355 4 OT630E04YP 1SCA123592R1001 F954376
800 550 800/450 3 OT800E03YP 1SCA123591R1001 F954375
800 550 800/450 4 OT800E04YP 1SCA123593R1001 F954377

Axes, poignées et boulons de bornes livrés en standard
Adaptés aux Axe Poignée Extension de poignée Boulons de bornes
interrupteurs
OT160 ... 250_Y OXP6/12x161C OHB65J12E011 OHBZX200 M8x25
OT315 ... 400_Y OXP12x166 OHB95J12E011 OHBZX200 M10x30
OT630 ... 800_Y OXP12x185 OHB125J12E011 OHBZX275 M12x40

Exemple d'application

A. B. C.

II II II II
I 0 I I
VFD VFD VFD
II II I II

M M M
VFD = variateur de fréquence

6/96 | ABB Contrôle industriel
