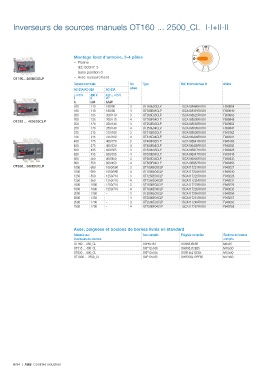

Inverseurs de sources manuels OT160 ... 2500_CL I-I+II-II

Montage fond d'armoire, 3-4 pôles
– Platine
– IEC 60947-3
– Sans position 0
OT160…250E03CLP – Avec recouvrement
Tension nominale Nb Type Réf. Internationale @ Article
pôles
AC-21A/AC-22A AC-23A
≤ 415 V 400 V 400 ... 415 V
I S I/P
A kVA A/kW
160 110 160/90 3 OT160E03CLP 1SCA108468R1001 F939954
160 110 160/90 4 OT160E04CLP 1SCA108491R1001 F939949
200 135 200/110 3 OT200E03CLP 1SCA108522R1001 F939953
200 135 200/110 4 OT200E04CLP 1SCA108530R1001 F939948
OT315 ... 400E03CLP
250 170 250/140 3 OT250E03CLP 1SCA108593R1001 F939952
250 170 250/140 4 OT250E04CLP 1SCA108605R1001 F939947
315 215 315/160 3 OT315E03CLP 1SCA108630R1001 F940162
315 215 315/160 4 OT315E04CLP 1SCA106404R1001 F940201
400 275 400/220 3 OT400E03CLP 1SCA108641R1001 F940163
400 275 400/220 4 OT400E04CLP 1SCA106405R1001 F940202
630 435 630/355 3 OT630E03CLP 1SCA106917R1001 F940428
630 435 630/355 4 OT630E04CLP 1SCA106947R1001 F940448
800 550 800/450 3 OT800E03CLP 1SCA106928R1001 F940433
800 550 800/450 4 OT800E04CLP 1SCA106952R1001 F940453
OT630…800E03CLP 1000 680 1000/560 3 OT1000E03CLP 1SCA117221R1001 F949227
1000 680 1000/560 4 OT1000E04CLP 1SCA117224R1001 F949230
1250 850 1250/710 3 OT1250E03CLP 1SCA117222R1001 F949228
1250 850 1250/710 4 OT1250E04CLP 1SCA117225R1001 F949231
1600 1000 1250/710 3 OT1600E03CLP 1SCA117223R1001 F949229
1600 1000 1250/710 4 OT1600E04CLP 1SCA117226R1001 F949232
2000 1350 – 3 OT2000E03CLP 1SCA117250R1001 F949256
2000 1350 – 4 OT2000E04CLP 1SCA117251R1001 F949257
2500 1700 – 3 OT2500E03CLP 1SCA117249R1001 F949255
2500 1700 – 4 OT2500E04CLP 1SCA117252R1001 F949258

Axes, poignées et boulons de bornes livrés en standard
Adaptés aux Axe compris Poignée comprise Boulons de bornes
inverseurs de sources compris
OT160 ... 250_CL OXP6x161 OHB65J6E65 M8x25
OT315 ... 400_CL OXP12x166 OHB95J12E65 M10x30
OT630 ... 800_CL OXP12x185 OHB145J12E65 M12x40
OT1000 ... 2500_CL OXP12x185 OHB200J12PE65 M12x60
