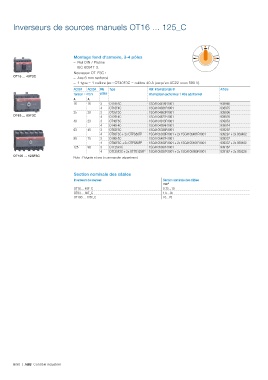

P. 1084
Inverseurs de sources manuels OT16 ... 125_C
Montage fond d'armoire, 3-4 pôles
– Rail DIN / Platine
– IEC 60947-3.
Nouveaux OT_F3C :
OT16 ... 40F3C – Axe 6 mm renforcé
– 1 type = 1 calibre (ex : OT40F3C = calibre 40 A jusqu'en AC22 sous 690 V).
AC22A AC23A Nb Type Réf. Internationale @ Article
Tension ≤ 415 V pôles Interrupteur-sectionneur / Pôle additionnel
A A
16 16 3 OT16F3C 1SCA104816R1001 938960
4 OT16F4C 1SCA104831R1001 938975
25 20 3 OT25F3C 1SCA104863R1001 939006
OT63 ... 80F3C 4 OT25F4C 1SCA104877R1001 939020
40 23 3 OT40F3C 1SCA104913R1001 939053
4 OT40F4C 1SCA104934R1001 939074
63 45 3 OT63F3C 1SCA105338R1001 939297
4 OT63F3C + 2x OTPS80FP 1SCA105338R1001 + 2x 1SCA105461R1001 939297 + 2x 939402
80 75 3 OT80F3C 1SCA105402R1001 939337
4 OT80F3C + 2x OTPS80FP 1SCA105402R1001 + 2x 1SCA105461R1001 939337 + 2x 939402
125 90 3 OT125F3C 1SCA105037R1001 939167
4 OT125F3C + 2x OTPS125FP 1SCA105037R1001 + 2x 1SCA105099R1001 939167 + 2x 939226
OT100 ... 125F3C Note : Poignée et axe à commander séparément.
Section nominale des câbles
Inverseurs de sources Section nominale des câbles
mm²
OT16 ... 40F_C 0.75…10
OT63 ... 80F_C 1.5…35
OT100 ... 125F_C 10…70
6/90 | ABB Contrôle industriel
