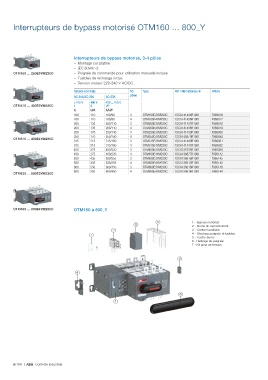

Interrupteurs de bypass motorisé OTM160 ... 800_Y

Interrupteurs de bypass motorisé, 3-4 pôles
– Montage sur platine
– IEC 60947-3
OTM160 ... 250E3YM230C – Poignée de commande pour utilisation manuelle incluse
– Fusibles de rechange inclus
– Tension moteur 220-240 V AC/DC..

Tension nominale Nb Type Réf. Internationale @ Article
AC-21A/AC-22A AC-23A pôles
≤ 415 V 400 V 400 ... 415 V
OTM315 ... 400E3YM230C I S I/P
A kVA A/kW
160 110 160/90 3 OTM160E3YM230C 1SCA141435R1001 F969016
160 110 160/90 4 OTM160E4YM230C 1SCA141436R1001 F969017
200 135 200/110 3 OTM200E3YM230C 1SCA141437R1001 F969018
200 135 200/110 4 OTM200E4YM230C 1SCA141438R1001 F969019
250 170 250/140 3 OTM250E3YM230C 1SCA141439R1001 F969030
250 170 250/140 4 OTM250E4YM230C 1SCA140870R1001 F968648
OTM315 ... 400E4YM230C
315 215 315/160 3 OTM315E3YM230C 1SCA141440R1001 F969031
315 215 315/160 4 OTM315E4YM230C 1SCA141441R1001 F969032
400 275 400/220 3 OTM400E3YM230C 1SCA136735R1001 F965260
400 275 400/220 4 OTM400E4YM230C 1SCA136677R1001 F965142
630 435 630/355 3 OTM630E3YM230C 1SCA136615R1001 F965145
630 435 630/355 4 OTM630E4YM230C 1SCA136613R1001 F965143
800 550 800/450 3 OTM800E3YM230C 1SCA136616R1001 F965146
800 550 800/450 4 OTM800E4YM230C 1SCA136614R1001 F965144
OTM630 ... 800E3YM230C

OTM630 ... 800E4YM230C OTM160 à 800_Y

1 - Bypass motorisé
2 - Borne de raccordement
3 - Contact auxiliaire
4 - Stockage poignée et fusibles
5 - Cache-borne
6 - Rallonge de poignée
7 - Kit prise de tension

6/104 | ABB Contrôle industriel
