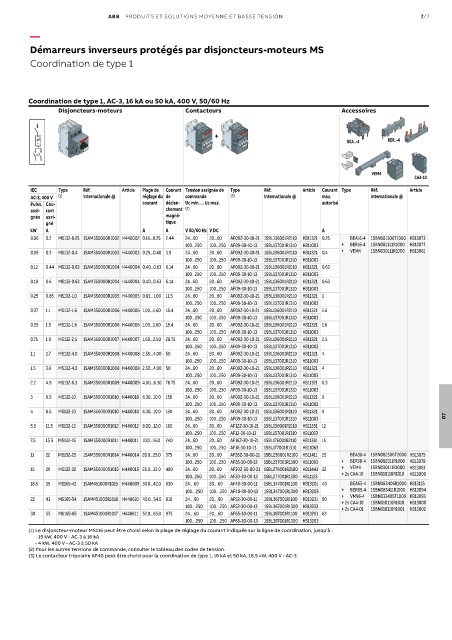

Page 965 - Les indispensables 2021

ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION 7/7

—
Démarreurs inverseurs protégés par disjoncteurs-moteurs MS

Coordination de type 1

Coordination de type 1, AC-3, 16 kA ou 50 kA, 400 V, 50/60 Hz
Disjoncteurs-moteurs Contacteurs Accessoires

+
BEA..-4 BER..-4
I >

VEM4
CA4-10
IEC Type Réf. Article Plage de Courant Tension assignée de Type Réf. Article Courant Type Réf. Article
AC-3, 400 V (1) internationale @ réglage du de commande (3) internationale @ max. internationale @
Puiss. Cou- courant déclen- Uc min. ... Uc max. autorisé
assi- rant chement (2)
gnée assi- magné-
gné tique
kW A A A V 50/60 Hz V DC A
0.06 0.2 MS132-0.25 1SAM350000R1002 H440002 0.16...0.25 2.44 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.25 BEA16-4 1SBN081306T1000 H313073
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003 + BER16-4 1SBN081311R1000 H313077
0.09 0.3 MS132-0.4 1SAM350000R1003 H440003 0.25...0.40 3.9 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.4 + VEM4 1SBN030111R1000 H313061
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.12 0.44 MS132-0.63 1SAM350000R1004 H440004 0.40...0.63 6.14 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.18 0.6 MS132-0.63 1SAM350000R1004 H440004 0.40...0.63 6.14 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.25 0.85 MS132-1.0 1SAM350000R1005 H440005 0.63...1.00 11.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.37 1.1 MS132-1.6 1SAM350000R1006 H440006 1.00...1.60 18.4 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.55 1.5 MS132-1.6 1SAM350000R1006 H440006 1.00...1.60 18.4 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.75 1.9 MS132-2.5 1SAM350000R1007 H440007 1.60...2.50 28.75 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 2.5
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
1.1 2.7 MS132-4.0 1SAM350000R1008 H440008 2.50...4.00 50 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 4
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
1.5 3.6 MS132-4.0 1SAM350000R1008 H440008 2.50...4.00 50 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 4
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
2.2 4.9 MS132-6.3 1SAM350000R1009 H440009 4.00...6.30 78.75 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 6.3
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
3 6.5 MS132-10 1SAM350000R1010 H440010 6.30...10.0 150 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 9
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
4 8.5 MS132-10 1SAM350000R1010 H440010 6.30...10.0 150 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 9
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003 07
5.5 11.5 MS132-12 1SAM350000R1012 H440012 8.00...12.0 180 24...60 20...60 AF12Z-30-10-21 1SBL156001R2110 H311351 12
100...250 100...250 AF12-30-10-13 1SBL157001R1310 H311033
7.5 15.5 MS132-16 1SAM350000R1011 H440011 10.0...16.0 240 24...60 20...60 AF16Z-30-10-21 1SBL176001R2110 H311381 16
100...250 100...250 AF16-30-10-13 1SBL177001R1310 H311063
11 22 MS132-25 1SAM350000R1014 H440014 20.0...25.0 375 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 25 BEA38-4 1SBN082306T2000 H313075
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093 + BER38-4 1SBN082311R1000 H313078
15 29 MS132-32 1SAM350000R1015 H440015 25.0...32.0 480 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 H311441 32 + VEM4 1SBN030111R1000 H313061
100...250 100...250 AF30-30-00-13 1SBL277001R1300 H311123 + 2x CA4-10 1SBN010110R1010 H313000
18.5 35 MS165-42 1SAM451000R1015 H448609 30.0...42.0 630 24…60 20…60 AF40-30-00-11 1SBL347001R1100 H313201 40 BEA65-4 1SBN083406R1000 H313115
100…250 100…250 AF40-30-00-13 1SBL347001R1300 H313203 + BER65-4 1SBN083411R1000 H313094
VM96-4
22 41 MS165-54 1SAM451000R1016 H448610 40.0...54.0 810 24…60 20…60 AF52-30-00-11 1SBL367001R1100 H313231 50 + + 2x CA4-10 1SBN033405T1000 H313093
1SBN010110R1010
H313000
100…250 100…250 AF52-30-00-13 1SBL367001R1300 H313233 + 2x CA4-01 1SBN010110R1001 H313002
30 55 MS165-65 1SAM451000R1017 H448611 52.0...65.0 975 24…60 20…60 AF65-30-00-11 1SBL387001R1100 H313261 63
100…250 100…250 AF65-30-00-13 1SBL387001R1300 H313263
(1) Le disjoncteur-moteur MS116 peut être choisi selon la plage de réglage du courant indiquée sur la ligne de coordination, jusqu'à :
- 15 kW, 400 V - AC-3 à 16 kA
- 4 kW, 400 V - AC-3 à 50 kA
(2) Pour les autres tensions de commande, consulter le tableau des codes de tension.
(3) Le contacteur tripolaire AF40 peut être choisi pour la coordination de type 1, 16 kA et 50 kA, 18.5 kW, 400 V - AC-3.
