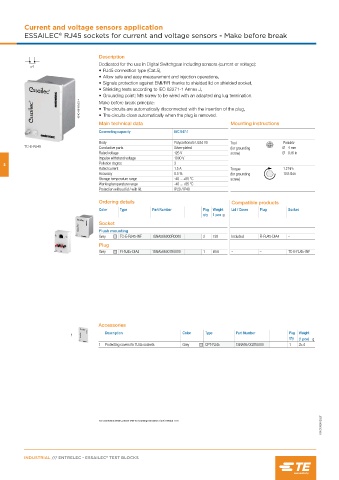

Page 16 - Essailec Test Blocks

Current and voltage sensors application
®
ESSAILEC RJ45 sockets for current and voltage sensors - Make before break

Description
Dedicated for the use in Digital Switchgear including sensors (current or voltage):
x4
• RJ45 connection type (Cat.5),
• Allow safe and easy measurement and injection operations,
• Signals protection against EMI/RFI thanks to shielded lid on shielded socket,
• Shielding tests according to IEC 62271-1 Annex J,
• Grounding point: M5 screw to be wired with an adapted ring lug termination.
1SNC169160V0014 Make before break principle:
• The circuits are automatically disconnected with the insertion of the plug,
• The circuits close automatically when the plug is removed.
Main technical data Mounting instructions
Connecting capacity IEC 947-1

Body Polycarbonate UL94 V0 Tool Posidriv
TC-E-RJ45 Conductive parts Silver-plated (for grounding Ø 4 mm
Rated voltage 125 V screw) Ø 0.16 in
Impulse withstand voltage 1000 V
2 Pollution degree 3
Rated current 1.5 A Torque 1.2 Nm
Accuracy 0.5 % (for grounding 10.8 lb.in
Storage temperature range -40 ... +85 °C screw)
Working temperature range -40 ... +85 °C
Protection without lid / with lid IP20 / IP40

Ordering details Compatible products
Color Type Part Number Pkg Weight Lid / Cover Plug Socket
qty 1 pce g
Socket
Flush mounting
Grey TC-E-RJ45-INF 1SNA566000R0000 3 138 Included FI-RJ45-DIA4 –
Plug
Grey FI-RJ45-DIA4 1SNA566001R0000 1 69.6 – – TC-E-RJ45-INF

Accessories
Description Color Type Part Number Pkg Weight
1
qty (1 pce) g
1 Protecting covers for RJ45 sockets Grey CPT-RJ45 1SNA167002R0000 1 25.4

1SNC169010S0201
For connection details, please refer to mounting instruction 1SNC169044L1701

®
