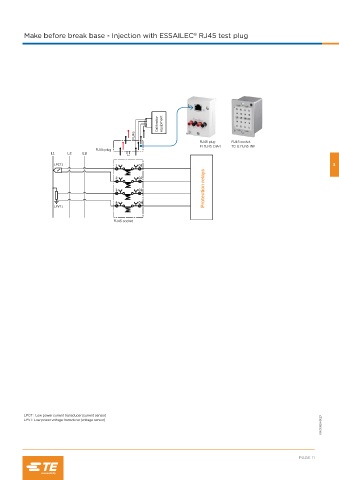

Make before break base - Injection with ESSAILEC RJ45 test plug
Calibration equipment
RJ45
RJ45 plug RJ45 socket
FI-RJ45-DIA4 TC-E-RJ45-INF
RJ45 plug
L1 L2 L3
LPCT1 1 01 2
Protection relays
2 02
3 03
4 04
LPVT1
RJ45 socket
LPCT : Low power current transducer (current sensor)
1SNC169004S0201
LPVT: Low power voltage transducer (voltage sensor)
