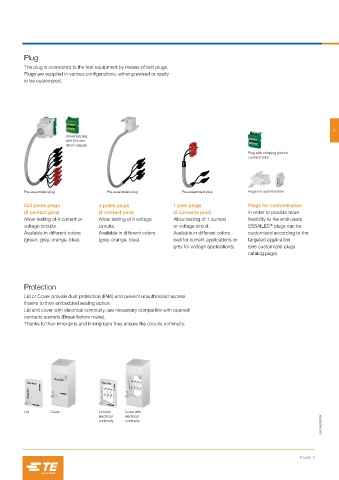

Plug
The plug is connected to the test equipment by means of test plugs.
Plugs are supplied in various configurations, either prewired or ready
to be customized.

1
Universal plug
with Ø 4 mm
direct outputs
Plug with crimping pins for
customization

Pre-assembled plug Pre-assembled plug Pre-assembled plug Plugs for customization

2x4 poles plugs 4 poles plugs 1 pole plugs Plugs for customization
(8 contact pins) (4 contact pins) (2 contacts pins) In order to provide more
Allow testing of 4 current or Allow testing of 4 voltage Allow testing of 1 current flexibility to the end-users
voltage circuits. circuits. or voltage circuit. ESSAILEC plugs can be
®
Available in different colors Available in different colors Available in different colors customized according to the
(green, grey, orange, blue). (grey, orange, blue). (red for current applications or targeted application
grey for voltage applications). (see customized plugs
catalog page).

Protection
Lid or Cover provide dust protection (IP40) and prevent unauthorized access
thanks to their embedded sealing option.
Lid and cover with electrical continuity, are necessary compatible with opened
contacts sockets (Break before make).
Thanks to their inner pins and linking bars they ensure the circuits continuity.

Lid Cover Lid with Cover with
1SNC169002S0201
electrical electrical
continuity continuity
