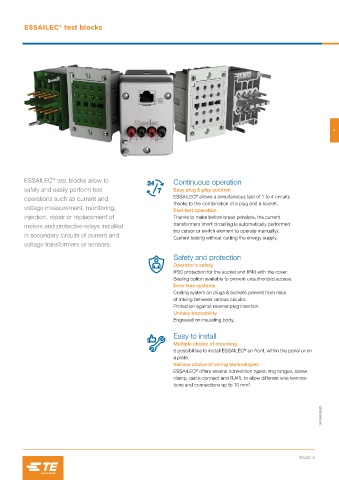

ESSAILEC test blocks
1
ESSAILEC test blocks allow to 24 Continuous operation
®
safely and easily perform test 7 Easy plug & play solution
®
operations such as current and ESSAILEC allows a simultaneous test of 1 to 4 circuits
thanks to the combination of a plug and a socket.
voltage measurement, monitoring,
Fast test operation
injection, repair or replacement of Thanks to make before break principle, the current
meters and protective relays installed transformers short circuiting is automatically performed
(no cursor or switch element to operate manually).
in secondary circuits of current and
Current testing without cutting the energy supply.
voltage transformers or sensors.
Safety and protection
Operator's safety
IP20 protection for the socket and IP40 with the cover.
Sealing option available to prevent unauthorized access.
Error free systems
Coding system on plugs & sockets prevent from risks
of mixing between various circuits.
Protection against reverse plug insertion.
Unitary traceability
Engraved on insulating body.
Easy to install
Multiple choice of mounting
®
5 possibilities to install ESSAILEC on front, within the panel or on
a plate.
Various choice of wiring technologies
®
ESSAILEC offers several connection types: ring tongue, screw
clamp, quick-connect and RJ45, to allow different wire termina-
tions and connections up to 10 mm².
1SNC169001S0201
