Page 3 - Essailec Test Blocks
P. 3

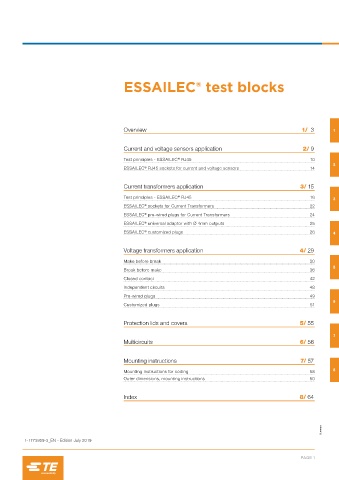

ESSAILEC® test blocks
Overview 1/ 3 1
Current and voltage sensors application 2/ 9
®
Test principles - ESSAILEC RJ45 10
2
®
ESSAILEC RJ45 sockets for current and voltage sensors 14
Current transformers application 3/ 15
®
Test principles - ESSAILEC RJ45 16 3
®
ESSAILEC sockets for Current Transformers 22
®
ESSAILEC pre-wired plugs for Current Transformers 24
ESSAILEC universal adaptor with Ø 4mm outputs 25
®
ESSAILEC customized plugs 26 4
®
Voltage transformers application 4/ 29
Make before break 30
5
Break before make 36
Closed contact 42
Independent circuits 48
Pre-wired plugs 49
6
Customized plugs 51
Protection lids and covers 5/ 55
7
Multicircuits 6/ 56
Mounting instructions 7/ 57
8
Mounting instructions for coding 58
Outer dimensions, mounting instructions 60
Index 8/ 64
Summary
1-1773959-3_EN - Edition July 2019
PAGE 1
