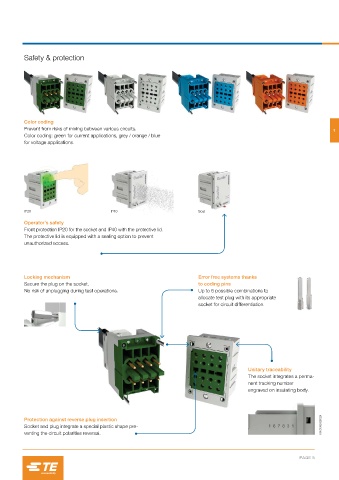

Safety & protection
Color coding
Prevent from risks of mixing between various circuits. 1
Color coding: green for current applications, grey / orange / blue
for voltage applications.
IP20 IP40 Seal
Operator’s safety
Front protection IP20 for the socket and IP40 with the protective lid.
The protective lid is equipped with a sealing option to prevent
unauthorized access.
Locking mechanism Error free systems thanks
Secure the plug on the socket. to coding pins
No risk of unplugging during test operations. Up to 6 possible combinations to
allocate test plug with its appropriate
socket for circuit differentiation.
Unitary traceability
The socket integrates a perma-
nent tracking number
engraved on insulating body.
Protection against reverse plug insertion
Socket and plug integrate a special plastic shape pre- 1SNC169002S0201
venting the circuit polarities reversal.
