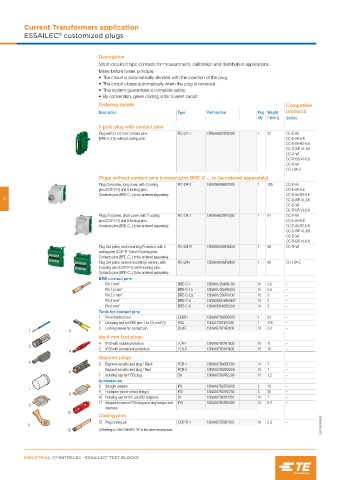

Current Transformers application
ESSAILEC customized plugs
®

Description
Short-circuited type contacts for measurement, calibration and distribution applications.
Make before break principle:
• The circuit is automatically shorted with the insertion of the plug.
• The circuit closes automatically when the plug is removed.
• This system guarantees a complete safety.
• By convention, green coding is for current circuit.
Ordering details Compatible
Description Type Part Number Pkg Weight products
qty 1 pce g Socket
1 pole plug with contact pins
Plug with 2x 2.5 mm² contact pins FIC-2/1-1 1SNA166819R2300 1 27 CC-E-VA
(BRE-C-2.5), without coding pins. CC-E-VA-6.6
CC-E-VA-R2-6.6
CC-S-INF-VL-6.6
CC-D-VA
CC-TH35-VL-6.6
CC-R-VA
CC-I-VA-2
Plugs without contact pins (contact pins BRE-C..., to be ordered separately)
Plugs 2x4 poles, long cover, with 2 coding FIC-2/4-2 1SNA166936R1000 1 105 CC-E-VA
pins (COP-FI-1) and 8 locking pins. CC-E-VA-6.6
Contacts pins (BRE-C...) to be ordered separately. CC-E-VA-R2-6.6
3 CC-S-INF-VL-6.6
CC-D-VA
CC-TH35-VL-6.6
Plugs 2x4 poles, short cover, with 2 coding FIC-2/4-1 1SNA166525R1400 1 91 CC-E-VA
pins (COP-FI-1) and 8 locking pins. CC-E-VA-6.6
Contacts pins (BRE-C...) to be ordered separately. CC-E-VA-R2-6.6
CC-S-INF-VL-6.6
CC-D-VA
CC-TH35-VL-6.6
Plug 2x4 poles, rack mounting R version, with 2 FIC-2/4-R 1SNA166529R2000 1 80 CC-R-VA
coding pins (COP-FI-1) and 8 locking pins.
Contacts pins (BRE-C...) to be ordered separately.
Plug 2x4 poles, reverse mounting I version, with FIC-2/4-I 1SNA166589R2500 1 60 CC-I-VA-2
2 coding pins (COP-FI-1) and 8 locking pins.
Contacts pins (BRE-C...) to be ordered separately.
BRE contact pins
Pin 1 mm² BRE-C-1 1SNA167264R0700 10 2.6 –
Pin 1.5 mm² BRE-C-1.5 1SNA167265R0000 10 2.6 –
Pin 2.5 mm² BRE-C-2.5 1SNA167260R1700 10 3 –
Pin 4 mm² BRE-C-4 1SNA205876R0400 10 3 –
Pin 6 mm² BRE-C-6 1SNA168146R0200 10 3 –
Tools for contact pins
1 Pin extraction tool EXBR1 1SNA167008R0300 1 24 –
2 Crimping tool for BRE pins 1 to 2.5 mm² (1) PSC 1SNA173181R1300 1 478 –
3 Locking sleeve for contact pin DLVR 1SNA167971R2400 10 0.4 –
1 2
dia 4 mm test plugs
4 IP20 with mobile protection FC4-1 1SNA167927R1000 10 11 –
3
5 IP20 with permanent protection FC4-5 1SNA167931R1400 10 10 –
4
Bayonet plugs
5
6 Bayonet security test plug / Black FCB-1 1SNA167690R0700 10 7 –
Bayonet security test plug / Red FCB-2 1SNA167692R2500 10 7 –
6
7 Isolating cap for FCB plug CA 1SNA167697R2200 10 1.2 –
Accessories
8 Straight adaptor IR1 1SNA167622R2600 5 15 –
7
9 H adaptor (short-circuit bridge) IR2 1SNA167623R2700 5 35 –
8
10 Isolating cap for IR1 and IR2 adaptors DI 1SNA167981R1700 10 7 –
11 Adaptor between FCB plug and ring-tongue test IR3 1SNA167624R2000 10 6.4 –
9
interface
10
Coding pins
12 Plug coding pin COP-FI-1 1SNA167378R1100 10 2.3 –
11 1SNC169019S0201
12 (1) Refering to 1SNC169040D1702 to find other crimping tools
