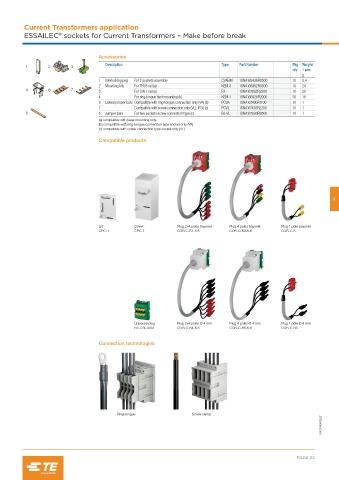

Page 25 - Essailec Test Blocks

Current Transformers application
®
ESSAILEC sockets for Current Transformers – Make before break

Accessories
Description Type Part Number Pkg Weight
1 2 3
qty 1 pce
g
1 Interlocking peg For 2 sockets assembly CVABM 1SNA183436R0500 10 0.4
2 Mounting kits For TH35 rail (a) KEM-3 1SNA166962R0000 10 24
4 6 7
3 For DIN 1 rail (a) FX 1SNA167682R2300 10 20
4 For ring-tongue flush mounting (b) KEM-1 1SNA166928R2000 50 18
6 Lateral jumper bars Compatible with ring-tongue connection only (VA) (b) PCVA 1SNA167496R1100 10 1
7 Compatible with screw connection only (VL); IP20 (c) PCVL 1SNA167681R2200 10 1
5 5 Jumper bars For two sockets screw connection type (c) BJ-VL 1SNA167680R0500 10 1
(a) compatible with base mounting only.
(b) compatible with ring-tongue connection type socket only (VA).
(c) compatible with screw connection type socket only (VL).
Compatible products

3

Lid Cover Plug 2x4 poles bayonet Plug 4 poles bayonet Plug 1 pole bayonet
CPC-1 CPC-7 COR-C-R1-6.6 COR-C-R2-6.6 COR-C-3

Universal plug Plug 2x4 poles Ø 4 mm Plug 4 poles Ø 4 mm Plug 1 pole Ø 4 mm
FIC-2/4-DIA4 COR-C-R4-6.6 COR-C-R5-6.6 COR-C-R3

Connection technologies

Ring-tongue Screw clamp
1SNC169016S0201
