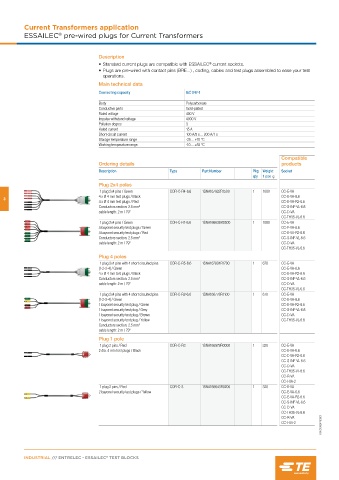

Current Transformers application
®
ESSAILEC pre-wired plugs for Current Transformers

Description
®
• Standard current plugs are compatible with ESSAILEC current sockets.
• Plugs are pre-wired with contact pins (BRE...) , coding, cables and test plugs assembled to ease your test
operations.
Main technical data
Connecting capacity IEC 947-1
Body Polycarbonate
Conductive parts Gold-plated
Rated voltage 400 V
Impulse withstand voltage 4000 V
Pollution degree 3
Rated current 15 A
Short-circuit current 100 A/5 s ... 200 A/1 s
Storage temperature range -25 ... +70 °C
Working temperature range -10 ... +55 °C

Compatible
Ordering details products
Description Type Part Number Pkg Weight Socket
qty 1 pce g
Plug 2x4 poles
1 plug 2x4 pins / Green COR-C-R4-6.6 1SNA167932R1500 1 1080 CC-E-VA
3 4 x Ø 4 mm test plugs / Black CC-E-VA-6.6
4 x Ø 4 mm test plugs / Red CC-E-VA-R2-6.6
Conductors section: 2.5 mm² CC-S-INF-VL-6.6
cable length: 2 m / 79" CC-D-VA
CC-TH35-VL-6.6
1 plug 2x4 pins / Green COR-C-R1-6.6 1SNA166638R0500 1 1080 CC-E-VA
4 bayonet security test plugs / Green CC-E-VA-6.6
4 bayonet security test plugs / Red CC-E-VA-R2-6.6
Conductors section: 2.5 mm² CC-S-INF-VL-6.6
cable length: 2 m / 79" CC-D-VA
CC-TH35-VL-6.6
Plug 4 poles
1 plug 2x4 pins with 4 short circuited pins COR-C-R5-6.6 1SNA167934R1700 1 670 CC-E-VA
(1-2-3-4) / Green CC-E-VA-6.6
4 x Ø 4 mm test plugs / Black CC-E-VA-R2-6.6
Conductors section: 2.5 mm² CC-S-INF-VL-6.6
cable length: 2 m / 79" CC-D-VA
CC-TH35-VL-6.6
1 plug 2x4 pins with 4 short circuited pins COR-C-R2-6.6 1SNA166778R1100 1 670 CC-E-VA
(1-2-3-4) / Green CC-E-VA-6.6
1 bayonet security test plug / Green CC-E-VA-R2-6.6
1 bayonet security test plug / Grey CC-S-INF-VL-6.6
1 bayonet security test plug / Brown CC-D-VA
1 bayonet security test plug / Yellow CC-TH35-VL-6.6
Conductors section: 2.5 mm²
cable length: 2 m / 79"
Plug 1 pole
1 plug 2 pins / Red COR-C-R3 1SNA166979R0000 1 320 CC-E-VA
2 dia. 4 mm test plugs / Black CC-E-VA-6.6
CC-E-VA-R2-6.6
CC-S-INF-VL-6.6
CC-D-VA
CC-TH35-VL-6.6
CC-R-VA
CC-I-VA-2
1 plug 2 pins / Red COR-C-3 1SNA166643R0200 1 320 CC-E-VA
2 bayonet security test plugs / Yellow CC-E-VA-6.6
CC-E-VA-R2-6.6
CC-S-INF-VL-6.6
CC-D-VA
CC-TH35-VL-6.6
1SNC169017S0201
CC-R-VA
CC-I-VA-2

®
